LM270WQA-SSA2 LG Display 27.0" 2560(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY

LM270WQA-SSA2 LG Display 27.0" 2560(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY

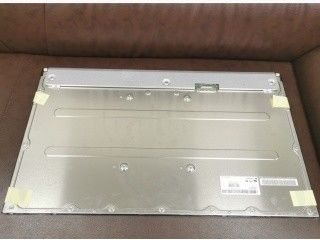

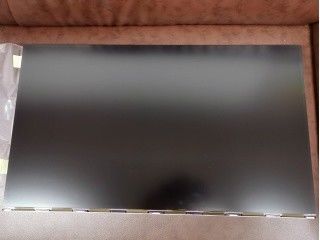

LM270WQA-SSA2 LG Display 27.0" 2560(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY LM270WQA-SSA2 LG Display 27.0" 2560(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY LM270WQA-SSA2 LG Display 27.0" 2560(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM270WQA-SSA2 LG Display 27.0" 2560(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM270WQA-SSA2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LM270WQA-SSA2 LG Display 27.0" 2560(RGB)×1440 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM270WQA-SSA2 BRAND: LG DISPLAY
SIZE: 27.0"inch BRIGHTNESS: 400 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 2560(RGB)×1440 (Quad-HD) 108PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

VGA Touch Lcd Video Display

,

WVGA Industrial TFT Display

,

LM270WQA-SSA2 Square Tft Display

LG Display LM270WQA-SSA2 Application Details

Basic Info :
Panel Brand

LM270WQA-SSA2Panel Model
Diagonal Size
27.0"
Application





  •
  •
Panel Type
a-Si TFT-LCD , LCM
Model Alias
LM270WQA (SS)(A2)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LM270WQA-SSA2 Mechanical Details

Pixel Features :
Pixel Format
2560(RGB)×1440, Quad-HD
Dot Pitch
0.0777×0.2331 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2331×0.2331 mm (H×V) [108PPI]
Mechanical Size :
Display Area
596.74×335.66 mm (H×V)
Bezel Area
-
Outline Dim.
608.8×355.1 mm (H×V)
Outline Depth
10.1/15.7 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
3-side borderless
Holes & Brackets :
Rear mounting holes (15-M3)
Other Features :
Weight
2.55Kgs (Typ.)
Surface
Antiglare (Haze 25%), Hard coating (3H)



LG Display LM270WQA-SSA2 Optical Details

Basic Information :
Brightness
400 cd/m² (Typ.), HDR400
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
5 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
1.07B (8-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
94%
sRGB
100% coverage
Adobe RGB
87% coverage
DCI-P3
95% coverage
Rec.2020
70% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM270WQA-SSA2 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
4 strings × 2CN
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
4 strings × 2CN
Position
Edge light type (Bottom side)
Lamp Electrical :
Voltage Input
46±1.6V
Current Input
85/90mA (Typ./Max.)
Consumption
31.3/32.4W (Typ./Max.)
Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
YEONHO
10035WS-H06D
1.0 mm
6 pins
2 pcs
BLE-6PINS-CCAACC



LG Display LM270WQA-SSA2 Interface Detail

Signal Systerm :
eDP (2 ch, 4 Lanes), HBR2 (5.4G/lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
10.0V (Typ.)
Current Input
560/840mA (Typ./Max.)
Consumption
5.6/8.4W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
I-PEX
20525-060E-01
0.4 mm
60 pins
1 pcs



LG Display LM270WQA-SSA2 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
10 pcs / box - 365×710×448 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
