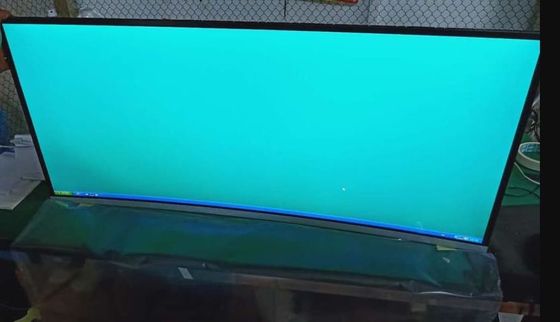

Product Details:
|

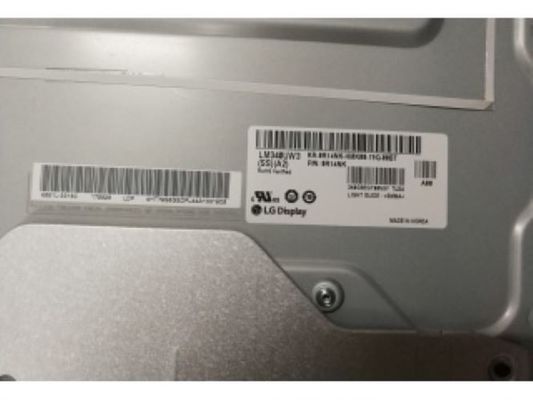

| MODEL NUMBER: | LM340UW3-SSA2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 34 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3440(RGB)×1440, 109PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | VGA Touch Lcd Video Display,WVGA Industrial TFT Display,LM340UW3-SSA2 Square Tft Display |
||
| Basic Info : | Panel Brand | Panel Model | LM340UW3-SSA2 | |
|---|---|---|---|---|
| Diagonal Size | 34" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 3440(RGB)×1440 | Dot Pitch | 0.0775×0.2535 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2325×0.2325 mm (H×V) [109PPI] | |
| Mechanical Size : | Display Area | 799.8×334.8 mm (H×V) | Bezel Area | - |
| Outline Dim. | 809.55×351.7 mm (H×V) | Outline Depth | 16.7 (Typ.) mm | |
| Outline Features : | Form Factor | Curved Display, R1900 | Orientation | Landscape type |
| Aspect Ratio | 21:9 (H:V) | Shape Style | 4-side borderless | |

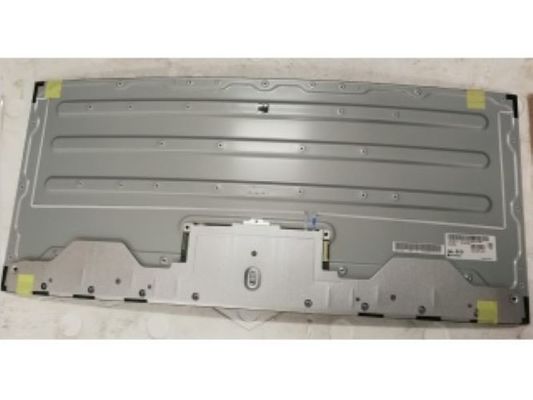

| Holes & Brackets : | Rear mounting holes (23-M3) | |||
| Other Features : | Weight | 4.35/4.57Kgs (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 12S4P | Position | Edge light type (Top side) | |
| Lamp Electrical : | Voltage Input | 36.2±2.4V | Current Input | 110/115mA (Typ./Max.) | ||
| Consumption | 31.9/34.0W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | 20037WR-H12 | 2.0 mm | 12 pins | 1 pcs | ||
| Signal Systerm : | eDP (4 Lanes) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10.0V (Typ.) | Current Input | 1.31±0.33A | ||
| Consumption | 13.1±9.8W | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| LS Mtron | GT05Q-30S-H10-MN | 0.5 mm | 30 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 11 pcs / box | - | 934×542×450 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
