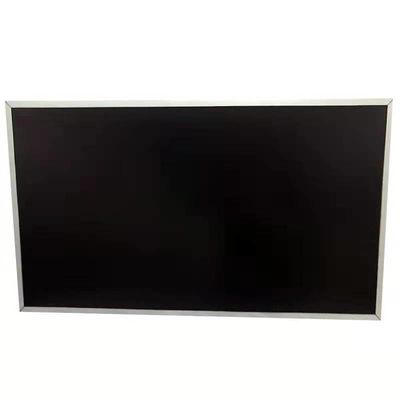

LC860EQN-FJA1 LG Display 86" 3840(RGB)×2160 410 cd/m² INDUSTRIAL LCD DISPLAY

LC860EQN-FJA1 LG Display 86" 3840(RGB)×2160 410 cd/m² INDUSTRIAL LCD DISPLAY
LC860EQN-FJA1 LG Display 86" 3840(RGB)×2160 410 cd/m² INDUSTRIAL LCD DISPLAY LC860EQN-FJA1 LG Display 86" 3840(RGB)×2160 410 cd/m² INDUSTRIAL LCD DISPLAY LC860EQN-FJA1 LG Display 86" 3840(RGB)×2160 410 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LC860EQN-FJA1 LG Display 86" 3840(RGB)×2160 410 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LC860EQN-FJA1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

LC860EQN-FJA1 LG Display 86" 3840(RGB)×2160 410 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LC860EQN-FJA1 BRAND: LG DISPLAY
SIZE: 86INCH BRIGHTNESS: 410CD/M2
Lamp Type: WLED RESOLUTION: 3840(RGB)×2160 [UHD] 51PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

VGA Touch Lcd Video Display

,

WVGA Industrial TFT Display

,

LC860EQN-FJA1 Square Tft Display

LG Display LC860EQN-FJA1 Application Details

Basic Detail :
Manufacturer

LC860EQN-FJA1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LC860EQN (FJ)(A1)
Panel Size
86 inch
Designed For





  •
  •
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LC860EQN-FJA1 Optical Details

Basic Detail :
Luminance
410 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
8 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.281; Wy:0.288
Support Color
16.7M/1.07B (8-bit / 8-bit + Hi-FRC)
Color Temperature
9966K
White Variation
-
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
97% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LC860EQN-FJA1 Mechanical Details

Pixel Features :
Number of Pixel
3840(RGB)×2160, UHD
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.1645×0.4935 mm
Pixel Pitch(W×H)
0.4935×0.4935 mm [51PPI]
Physical Size :
Active Viewing
1895.04(W)×1065.96(H) mm
Overall Dim.
1922.2(W)×1093.2(H) mm
Bezel Opening
1897.0(W)×1068.0(H) mm
Overall Depth
29/43.3 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style

Other Detail :
Mass
38.0/39.9Kgs (Typ./Max.)
Surface
Antiglare (Haze 3%), Hard coating (2H)



LG Display LC860EQN-FJA1 Interface Detail

Signal Electrical :
Input Current
2.7/3.5A (Typ./Max.)
Input Voltage
12.0V (Typ.)
Consumption
31.92/41.5W (Typ./Max.)
Signal Interface
V-by-One 8 lane
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-RXE51S-HF
0.5 mm
51 pins
1 pcs

YEONHO
20037WR-H05
2.0 mm
5 pins
1 pcs



LG Display LC860EQN-FJA1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
-
Position
Edge light type
Exchange
-
Lamp Shape
-
Lamp Life
50K(Typ.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
20022WR-H12B2
2.0 mm
12 pins
1 pcs

YEONHO
20022WR-H14B2
2.0 mm
14 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Input Voltage
24.0±2.4V
Input Current
9.5A (Typ.)
Consumption
228.8W (Typ.)



LG Display LC860EQN-FJA1 Packing Details

Package Box : Amount Size (L×W×H) Weight
6 pcs / box - 2280×780×1420 mm
