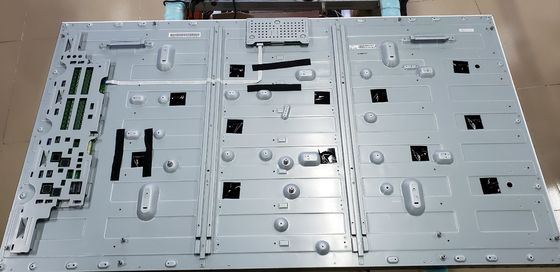

Product Details:
|
| MODEL NUMBER: | LD550DUN-TKB2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 55 Inch | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1080 [FHD] 40PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Touch Lcd Video Display,WVGA Industrial TFT Display,LD550DUN-TKB2 Square Tft Display |
||

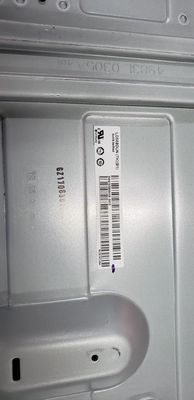

| Basic Detail : | Manufacturer | Model Name | LD550DUN-TKB2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LD550DUN (TK)(B2) | |
| Panel Size | 55 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 12 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | S-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.292 | Support Color | 1.06B (8-bit + Dithering) |
| Color Temperature | 9972K | White Uniformity | 1.11/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.210×0.630 mm | Pixel Pitch(W×H) | 0.630×0.630 mm [40PPI] | |
| Physical Size : | Active Viewing | 1209.6(W)×680.4(H) mm | Overall Dim. | 1213.4(W)×684.2(H) mm |
| Bezel Opening | 1209.8(W)×680.6(H) mm | Overall Depth | 39.2/56.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |

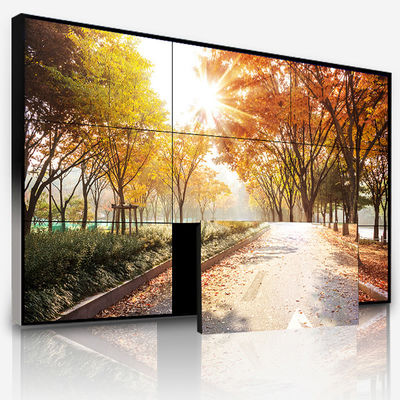

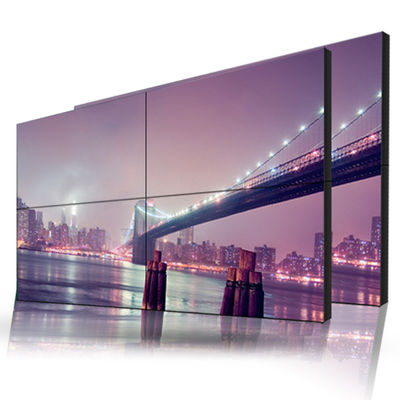

| Aspect Ratio(W:H) | 16:9 | Videowall Seam | 3.8 mm (Active to Active) | |
| Other Detail : | Mass | 16.0/16.8Kgs (Typ./Max.) | Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.210×0.630 mm | Pixel Pitch(W×H) | 0.630×0.630 mm [40PPI] | |
| Physical Size : | Active Viewing | 1209.6(W)×680.4(H) mm | Overall Dim. | 1213.4(W)×684.2(H) mm |
| Bezel Opening | 1209.8(W)×680.6(H) mm | Overall Depth | 39.2/56.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 16:9 | Videowall Seam | 3.8 mm (Active to Active) | |
| Other Detail : | Mass | 16.0/16.8Kgs (Typ./Max.) | Surface | Antiglare (Haze 10%), Hard coating (3H) |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Direct light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 60K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 20022WR-14B2 | 1 pcs | 2.0 mm | 14 pins | ||
| YEONHO | 20022WR-12B2 | 1 pcs | 2.0 mm | 12 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 6.14/6.88A (Typ./Max.) | Input Voltage | 24.0±2.4V | ||
| Consumption | 147.4/165.2W (Typ./Max.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 10 pcs / box | 1440×1140×950 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
