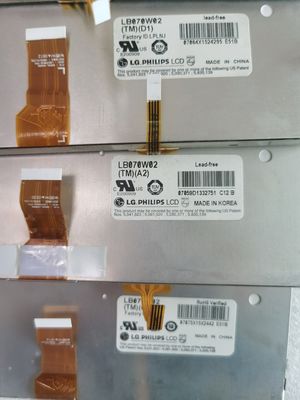

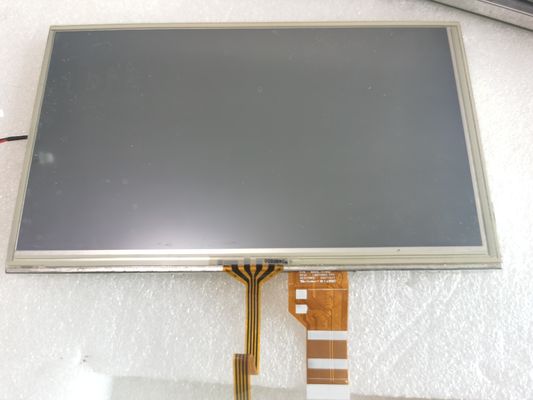

Product Details:
|
| MODEL NUMBER: | LB070W02-TMJ2 | BRAND: | LCD |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 220CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 480(RGB)×234, 76PPI |
| VIEWING ANGLEG: | 65/65/45/55 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| High Light: | VGA Touch Lcd Video Display,WVGA Industrial TFT Display,LB070W02-TMJ2 Square Tft Display |
||
| Basic Detail : | Manufacturer | Model Name | LB070W02-TMJ2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LB070W02 (TM)(J2) | |
| Panel Size | 7.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| Vibration Level | 1.5G (14.7 m/s²) |
LCD LB070W02-TMJ2 Optical Details
| Basic Information : | Luminance | 220 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/45/55 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.317; Wy:0.341 | Support Color | Full color |
| Color Temperature | 6202K | White Uniformity |
LCD LB070W02-TMJ2 Mechanical Details
| Pixel Features : | Number of Pixel | 480(RGB)×234 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.107×0.370 mm | Pixel Pitch(W×H) | 0.321×0.370 mm [76PPI] | |
| Physical Size : | Active Viewing | 154.08(W)×86.58(H) mm | Overall Dim. | 164.9(W)×100(H) mm |
| Bezel Opening | 156.2(W)×88.8(H) mm | Overall Depth | 5.7±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 170g (Typ.) | Surface | Anti |

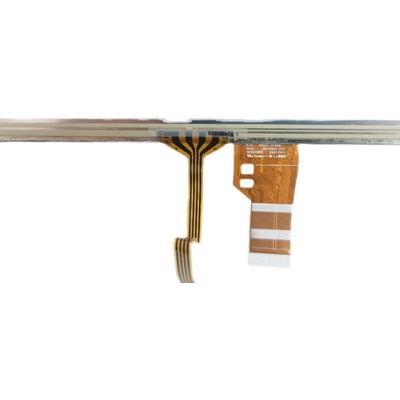

LCD LB070W02-TMJ2 Interface Details
| Signal Electrical : | Input Current | 5.0/50/0.5/15mA (Max.)(IDD1/IDD2/IGH/IGL) | Input Voltage | 3.3/5.0/16.5/-10V (Typ.)(VDD1/VDD2/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | TFT Specific Analog RGB | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 26 p | ||||
LCD LB070W02-TMJ2 Lightting Details
| Lamp Features: | Lamp Shape | L shape | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 20K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/6.0/7.0mA (Min./Typ./Max.) | Input Voltage | 567/594/633V (Min./Typ./Max.) | ||
| Frequency | 45/80KHz (Min./Max.) | Turn-on Voltage | 830/940V (Max.)(Ta=+25/0℃) | |||
| Consumption | 3.56W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | ||||||
LCD LB070W02-TMJ2 Packing Details
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 36 pcs / box | 475×348×182 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
