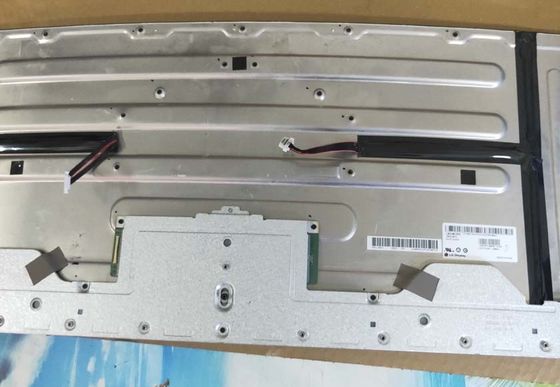

Product Details:
|
| MODEL NUMBER: | LM340UW5-SSB1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 34 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3440(RGB)×1440 109PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | VGA Touch Lcd Video Display,WVGA Industrial TFT Display,LM340UW5-SSB1 Square Tft Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|

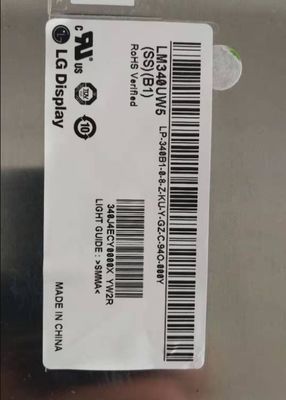

| LM340UW5-SSB1 | a-Si TFT-LCD , LCM | LM340UW5 (SS)(B1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 34 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3440(RGB)×1440 | RGB Vertical Stripe | 0.0775×0.2535 mm | 0.2325×0.2325 mm [109PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 799.8×334.8 mm | - | 809.55×355.2 mm | 16.4 (Typ.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |

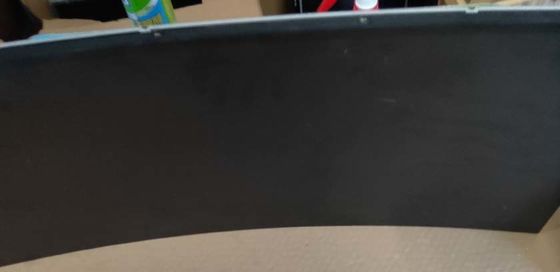

| Curved Display, R1900 | 21:9 (W : H) | Landscape type | 4-side borderless | |
| Fixation : | Rear mounting holes | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 3.30/3.47Kgs (Typ./Max.) | Antiglare (Haze 25%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Typ.)(CR≥10) | Symmetry | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 95% | 100% | 89% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 96% | 71% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 690/863mA (Typ./Max.) | 10.0V (Typ.) | 6.9/8.63W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | eDP (4 Lanes), HBR2 (5.4G/lane) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| LS Mtron | GT05Q-30S-H10-MN | 1 pcs | 0.5 mm | 30 pins | EDP-30P4L-030A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 115/120mA (Typ./Max.) | 41.2±2.8V | 56.8/60.7W (Typ./Max.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| YEONHO | SMH200-H12S4 | 2 pcs | 2.0 mm | 12 pins | ||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 7 pcs / box | - | 934×358×450 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
