Product Details:
|
| MODEL NUMBERMODEL NUMBER: | LM290WW1-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 29.0INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1080 [CSHD] 96PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| High Light: | 96PPI CSHD Tft Lcd Display,Tft Lcd Display 300cd/m2,LM290WW1-SSA1 |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM290WW1-SSA1 | a-Si TFT-LCD , LCM | LM290WW1 (SS)(A1) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 29.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2560(RGB)×1080, CSHD | RGB Vertical Stripe | 0.0876×0.2628 mm | 0.2628×0.2628 mm [96PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 672.768×283.824 mm | - | 693.6×308.9 mm | 11.0/17.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 21:9 | Landscape type | 3-side borderless | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 3.40/3.57Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Rear mounting poles (13-M2.5) | |||
| Screen Size : | 29.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 2560(RGB)×1080, CSHD | RGB Vertical Stripe | 0.0876×0.2628 mm | 0.2628×0.2628 mm [96PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 672.768×283.824 mm | - | 693.6×308.9 mm | 11.0/17.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 21:9 | Landscape type | 3-side borderless | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 3.40/3.57Kgs (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Rear mounting poles (13-M2.5) | |||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Bottom side) | 30K(Min.) | 17S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 53.6±3.4V | 120/125mA (Typ./Max.) | 25.7/27.3W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CCAACC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 500±125mA | 6.0/7.5W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (4 ch, 8-bit) | Connector | |||||

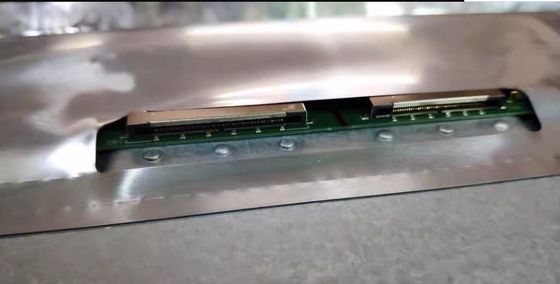

| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| LS Mtron | GT05P-51S-H38-E1500 | 1 pcs | 51 pins | 0.5 mm | ||
| LS Mtron | GT05P-41S-H38-E1500 | 1 pcs | 41 pins | 0.5 mm | ||
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 9 pcs / box | - | 840×365×420 mm (L×W×H) |
