Product Details:
|
| MODEL NUMBER: | LM340UW5-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 34 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3440(RGB)×1440, 109PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED TTL Industrial Lcd Display,WLED LVDS Lcd Video Panel,Hard Coating Industrial TFT Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM340UW5-SSA1 | a-Si TFT-LCD , LCM | LM340UW5 (SS)(A1) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (8-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 95% | 100% | 89% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 96% | 71% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 34" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3440(RGB)×1440 | RGB Vertical Stripe | 0.2325×0.2325 [109PPI] | 0.0775×0.2535 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 799.8(H) × 334.8(V) | - | 809.55(H) × 355.2(V) | 10.8 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |

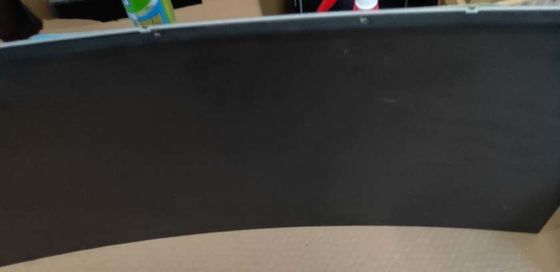

| Curved Display, R1900 | Landscape type | 21:9 (H:V) | 4-side borderless | |
| Mounting : | Rear mounting holes | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 3.30/3.47Kgs (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 41.2±2.8V | 115/120mA (Typ./Max.) | 56.8/60.7W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | SMH200-12S4 | 2.0 mm | 12 pins | 2 pcs | ||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 10.0±0.5V | 1.09/1.47A (Typ./Max.) | 10.9/14.7W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (2 ch, 4 Lanes), HBR2 (5.4G/lane) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| I-PEX | 20525-060E-01 | 0.4 mm | 60 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 7 pcs / box | - | 934×358×450 mm (L×W×H) |
