LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY

LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY
LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY

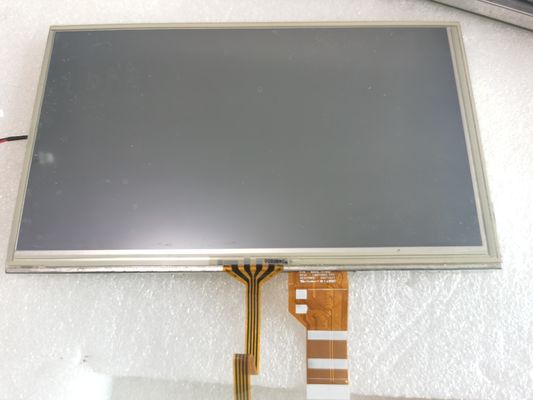

Large Image :  LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LA070WV1-TD04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

LA070WV1-TD04 LG Display 7.0" 800(RGB)×480 500 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LA070WV1-TD04 BRAND: LG DISPLAY
SIZE: 7.0INCH BRIGHTNESS: 500CD/M2
Lamp Type: WLED RESOLUTION: 800(RGB)×480 [WVGA] 134PPI
VIEWING ANGLEG: 70/70/50/60 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C
Highlight:

WLED TTL Industrial Lcd Display

,

WLED LVDS Lcd Video Panel

,

Hard Coating Industrial TFT Display

LG Display LA070WV1-TD04 Application Details

Basic Detail :
Manufacturer

LA070WV1-TD04Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LA070WV1 (TD)(04)
Panel Size
7.0 inch
Designed For
Maximum Ratings :
OP Temperature
-30 ~ 85 °C
ST Temperature
-40 ~ 85 °C
RoHS

1.0G (9.8 m/s²)Vibration Level



LG Display LA070WV1-TD04 Optical Details

Basic Detail :
Luminance
500 cd/m² (Typ.)
Contrast Ratio
600:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
5/15 (Typ.)(Tr/Td) ms
Viewing Angle
70/70/50/60 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.300; Wy:0.315
Support Color
262K (6-bit)
Color Temperature
7435K
White Variation
1.18/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
65%
sRGB
85% coverage
Adobe RGB
67% coverage
DCI-P3
67% coverage
Rec.2020
48% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LA070WV1-TD04 Mechanical Details

Pixel Features :
Number of Pixel
800(RGB)×480, WVGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0651×0.1716 mm
Pixel Pitch(W×H)
0.1953×0.1716 mm [134PPI]
Physical Size :
Active Viewing
156.24(W)×82.368(H) mm
Overall Dim.
167(W)×93(H) mm
Bezel Opening
158.3(W)×84.5(H) mm
Overall Depth
6.8/7.5 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
17:9
Shape Style

Fixation :
Without
Other Detail :
Mass
150±10g
Surface
Antiglare



LG Display LA070WV1-TD04 Interface Detail

Signal Electrical :
Input Current
2.3/31/0.25/0.3mA (Typ.)(DIDD/AIDD/IGH/IGL)
Input Voltage
3.3/10.0/18.5/-8.5V (Typ.)(DVDD/AVDD/VGH/VGL)
Consumption
-
Signal Interface
Parallel RGB (1 ch, 6-bit)
Logic Voltage :
0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
60 pins
1 pcs



LG Display LA070WV1-TD04 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
5S4P
Position
Edge light type
Exchange
-
Lamp Shape
4 strings
Lamp Life
10K(Min.) (Hours)
Lamp Electrical :
Input Voltage
13.0/15.0/17.0V (Min./Typ./Max.)
Input Current
57±5mA
Consumption
1.35/1.71/2.11W (Min./Typ./Max.)
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment


0.5 mm
10 pins
1 pcs
BLE-10PINS-CCNCCNAAAA
Backlight Driver :
No





LG Display LA070WV1-TD04 Packing Details

Package Box : Amount Size (L×W×H) Weight
40 pcs / box - 475×335×150 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
