Product Details:
|

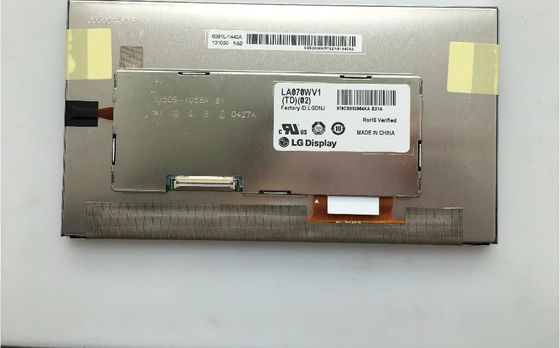

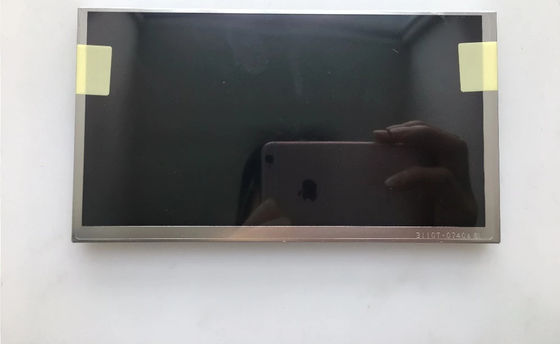

| MODEL NUMBER: | LA070WV1-TD03 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 700CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480, WVGA, 134PPI |
| VIEWING ANGLEG: | 70/70/50/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.84G (27.8 M/s²) |
| Highlight: | WLED TTL Industrial Lcd Display,WLED LVDS Lcd Video Panel,Hard Coating Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | LA070WV1-TD03 | |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LA070WV1 (TD)(03) | |
| Reliability : | Operating Temp. | -30 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 2.84G (27.8 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0651×0.1716 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1953×0.1716 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 156.24×82.368 mm (H×V) | Bezel Area | 158.4×85.1 mm (H×V) |
| Outline Dim. | 168.8×93.5 mm (H×V) | Outline Depth | 7.0/10.7 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 17:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 210/220g (Typ./Max.) | Surface | Antiglare, Reflection 4.0% (Typ.) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0651×0.1716 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1953×0.1716 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 156.24×82.368 mm (H×V) | Bezel Area | 158.4×85.1 mm (H×V) |
| Outline Dim. | 168.8×93.5 mm (H×V) | Outline Depth | 7.0/10.7 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 17:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 210/220g (Typ./Max.) | Surface | Antiglare, Reflection 4.0% (Typ.) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 15K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | TBD | ||
| Signal Systerm : | TTL (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | TBD | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | FH12K-40S-0.5SH | 0.5 mm | 40 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 36 pcs / box | - | 475×348×182 mm |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
