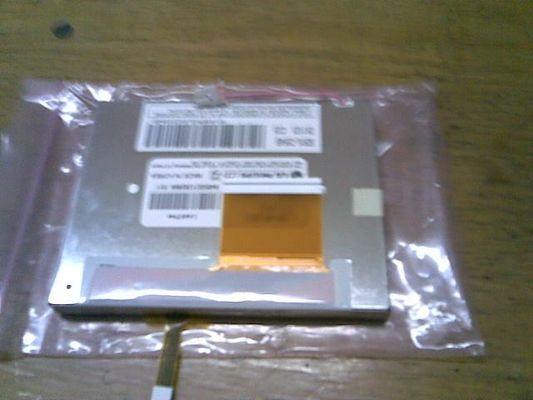

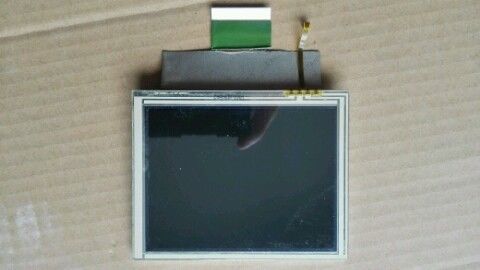

Product Details:
|
| MODEL NUMBER: | LB040Q02-TD01 | BRAND: | LG.LCD |
|---|---|---|---|
| SIZE: | 4.0INCH | BRIGHTNESS: | 450CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 320(RGB)×240, QVGA, 99PPI |
| VIEWING ANGLEG: | 65/65/50/65 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C |
| Highlight: | 99PPI TTL Industrial Lcd Display,320×240 WLED Lcd Video Panel,450cd/m2 Industrial TFT Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LB040Q02-TD01 | a-Si TFT-LCD , LCM | LB040Q02 (TD)(01) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 85 °C |
| Screen Size : | 4.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.085×0.255 mm | 0.255×0.255 mm [99PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 81.6×61.2 mm | 85.4×65.0 mm | 98.4×78 mm | 10.4±0.3 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 110/120g (Typ./Max.) | - | Antiglare | ||
| Holes & Brackets : | Face mounting holes (4 pcs; on bracket) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 400:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 65/65/50/65 (Typ.)(CR≥10) | 10/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 44% | 62% | 46% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 46% | 33% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.20/1.40 (Typ./Max.)(5 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 20K(Min.) | 1 pcs | L shape | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 370/390/510V (Min./Typ./Max.) | 3.0/6.0/6.5mA (Min./Typ./Max.) | 2.34/2.57W (Typ./Max.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 35/60/80KHz (Min./Typ./Max.) | 980/1250V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 100mA (Typ.)(ICC) | 0.45W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| CMOS/TTL (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| UJU | F100-S40B-C25 | 1 pcs | 40 pins | 1.0 mm | DRGB-40P1C6B-160A | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 132 pcs / box | - | 475×348×341 mm (L×W×H) |
