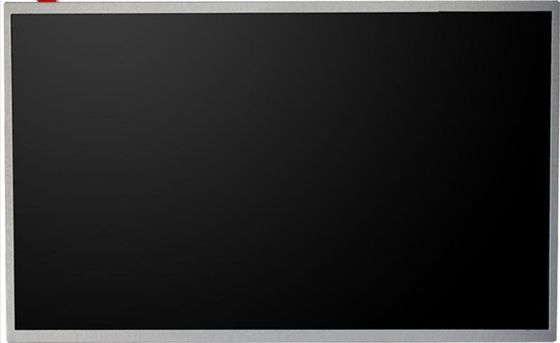

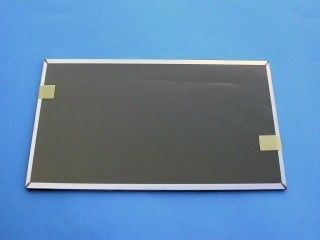

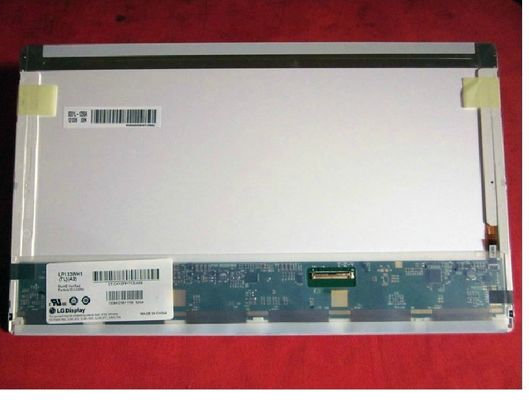

Product Details:
|
| MODEL NUMBER: | LP133WH1-TLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 13.3 Inch | BRIGHTNESS: | 200CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1366(RGB)×768 [WXGA] 118PPI |
| VIEWING ANGLEG: | 40/40/10/30 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED TTL Industrial Lcd Display,WLED LVDS Lcd Video Panel,Hard Coating Industrial TFT Display |
||
| Basic Information : | Brand Name | Model Name 1 Compatible | Type | Model Alias |
|---|---|---|---|---|
| LP133WH1-TLA1 | a-Si TFT-LCD , LCM | LP133WH1 (TL)(A1), LGDBC01 | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 13.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1366(RGB)×768, WXGA | RGB Vertical Stripe | 0.0716×0.2148 mm | 0.2148×0.2148 mm [118PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 293.42×164.97 mm | 299.5×168.4 mm | 307.6×183.1 mm | 5.2/5.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | Wedge (PCBA Bent, T≥5.2mm) | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 350g (Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (6-M2) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 200 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 40/40/10/30 (Min.)(CR≥10) | 16 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 64% | 48% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.40/1.60 (Typ./Max.)(13 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 12K(Min.) | - | 6 strings | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in panel signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 7.0/12.0/20.0V (Min./Typ./Max.) | 250mA (Typ.) | 3.1/3.3W (Typ./Max.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 360/410mA (Typ./Max.) | 1.0/1.2W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6-bit) | Connector | |||||

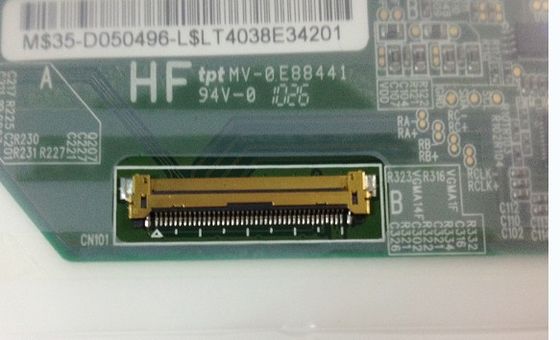

| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| I-PEX | 20455-040E-02 | 1 pcs | 40 pins | 0.5 mm | LVDS-40P1C6B-053A | |
| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 30 pcs / box | - | 430×378×268 mm (L×W×H) |
