LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY

LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY
LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY

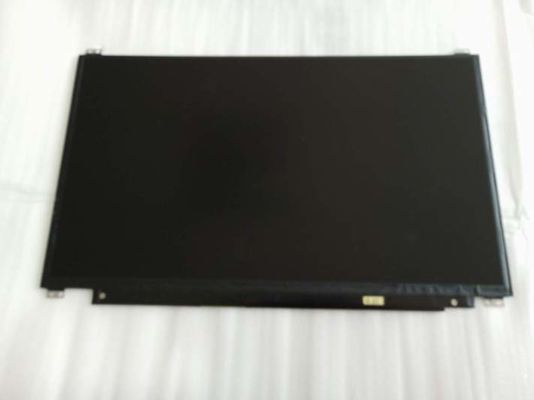

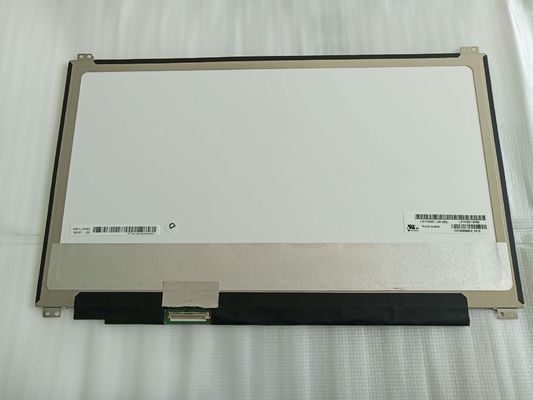

Large Image :  LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP133QD1-SPB3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP133QD1-SPB3 BRAND: LG DISPLAY
SIZE: 13.3 Inch BRIGHTNESS: 300CD/M2
Lamp Type: WLED RESOLUTION: 3200(WR/GB)×1800 226PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

WLED TTL Industrial Lcd Display

,

WLED LVDS Lcd Video Panel

,

Hard Coating Industrial TFT Display

LG Display LP133QD1-SPB3 Application Details

Basic Information :
Brand

LP133QD1-SPB3Model
Type
a-Si TFT-LCD , LCM
Used For

13.3 inchScreen Size
Alias
LP133QD1 (SP)(B3), LGD0545
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LP133QD1-SPB3 Mechanical Details

Pixel Features :
Resolution
3200(WR/GB)×1800
Dot Pitch(mm)
0.04584×0.09168 (H×V)
Pixel Format
RG/BW LCD PenTile
Pixel Pitch(mm)
0.09168×0.09168 (H×V) [226PPI]
Mechanical Size :
Active Area(mm)
293.38(H) × 165.02(V)
Bezel Area(mm)
-
Outline Dim.(mm)
306.15(H) × 193.99(V)
Depth(mm)
2.6/2.7 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on up, down slugs
Other Spec :
Weight
210g (Max.)
Treatment
Antiglare



LG Display LP133QD1-SPB3 Mechanical Details

Pixel Features :
Resolution
3200(WR/GB)×1800
Dot Pitch(mm)
0.04584×0.09168 (H×V)
Pixel Format
RG/BW LCD PenTile
Pixel Pitch(mm)
0.09168×0.09168 (H×V) [226PPI]
Mechanical Size :
Active Area(mm)
293.38(H) × 165.02(V)
Bezel Area(mm)
-
Outline Dim.(mm)
306.15(H) × 193.99(V)
Depth(mm)
2.6/2.7 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on up, down slugs
Other Spec :
Weight
210g (Max.)
Treatment
Antiglare



LG Display LP133QD1-SPB3 Mechanical Details

Pixel Features :
Resolution
3200(WR/GB)×1800
Dot Pitch(mm)
0.04584×0.09168 (H×V)
Pixel Format
RG/BW LCD PenTile
Pixel Pitch(mm)
0.09168×0.09168 (H×V) [226PPI]
Mechanical Size :
Active Area(mm)
293.38(H) × 165.02(V)
Bezel Area(mm)
-
Outline Dim.(mm)
306.15(H) × 193.99(V)
Depth(mm)
2.6/2.7 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on up, down slugs
Other Spec :
Weight
210g (Max.)
Treatment
Antiglare



LG Display LP133QD1-SPB3 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
6.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
295/325mA (Typ./Max.)
Consumption
3.54/3.90W (Typ./Max.)



LG Display LP133QD1-SPB3 Packing Details

Package Box : Quantity Weight Box Size
20 pcs / box - 478×365×288 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





LP133QD1-SPB3 LG Display 13.3" 3200(RGB)×1800 300 cd/m² INDUSTRIAL LCD DISPLAY 0
