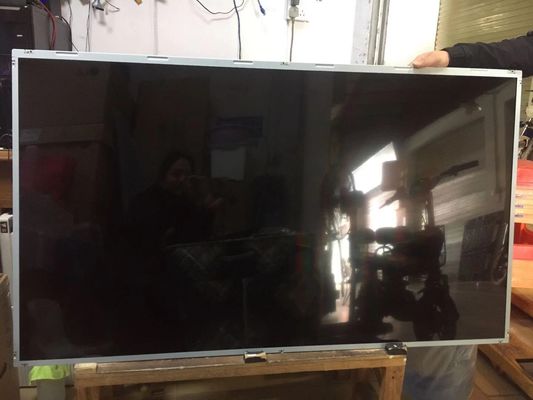

Product Details:
|
| MODEL NUMBER: | LC550EGE-FHM1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 55 Inch | BRIGHTNESS: | 390CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(3)×2160 (UHD) 65PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WLED TTL Industrial Lcd Display,WLED LVDS Lcd Video Panel,Hard Coating Industrial TFT Display |
||
| Basic Info : | Panel Brand | Panel Model | LC550EGE-FHM1 | |
|---|---|---|---|---|
| Diagonal Size | 55" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LC550EGE (FH)(M1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 3840(3)×2160 [UHD] | Dot Pitch | - |
|---|---|---|---|---|
| Configuration | RGBW Vertical Stripe | Pixel Pitch | 0.420×0.315 mm (H×V) [65PPI] | |
| Mechanical Size : | Display Area | 1209.6×680.4 mm (H×V) | Bezel Area | 1214.6×685.4 mm (H×V) |
| Outline Dim. | 1233.4×706.8 mm (H×V) | Outline Depth | 13.3/29.9 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 12.5/13.0Kgs (Typ./Max.) | Surface | Antiglare (Haze 1%), Hard coating (3H) |
| Basic Information : | Brightness | 390 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 9 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.281; Wy:0.288 | Color Numbers | 16.7M/1.07B (8-bit / 8-bit + Dithering) |
| Color Temperature | 9966K | White Uniformity | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 94% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 185.4±15V | Current Input | 180mA (Typ.) | ||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| YEONHO | SMH200-H07M | 2.0 mm | 7 pins | 1 pcs | BLE-7PINS-CNANCNA | |
| Signal Systerm : | V-by-One 8 lane | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 12.0V (Typ.) | Current Input | 1.17/1.52A (Typ./Max.) | ||
| Consumption | 14.83/1928W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JAE | FI-RE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 22 pcs / box | - | 1440×1140×950 mm |
