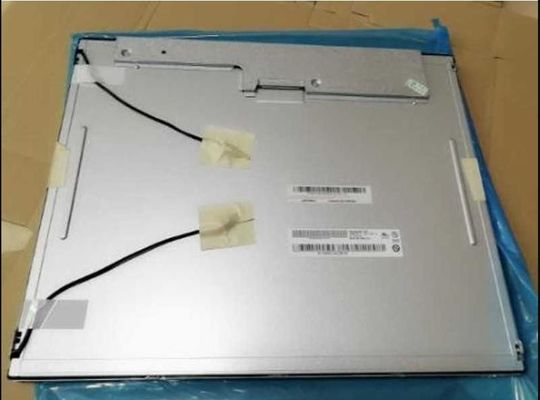

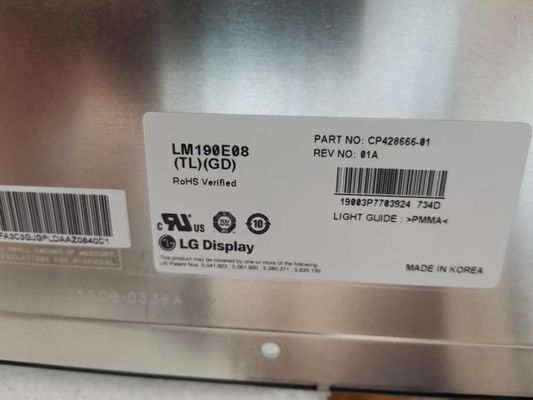

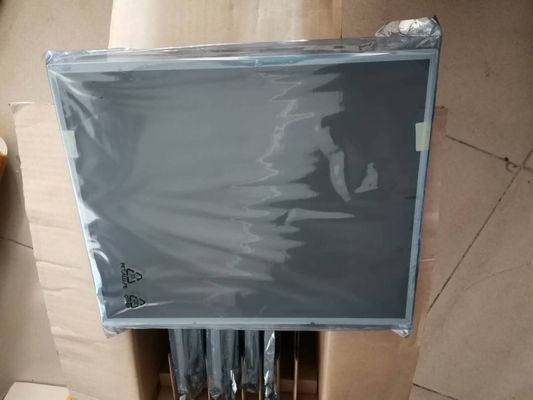

LM190E08-TLGD LG Display 19.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

Large Image : LM190E08-TLGD LG Display 19.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM190E08-TLGD

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	500PCS

Contact Now

LM190E08-TLGD LG Display 19.0" 1280(RGB)×1024 300 cd/m² INDUSTRIAL LCD DISPLAY

Description

MODEL NUMBER:	LM190E08-TLGD	BRAND:	LG DISPLAY
SIZE:	19.0 Inch	BRIGHTNESS:	300CD/M2
Lamp Type:	WLED	RESOLUTION:	1280(RGB)×1024 [SXGA] 86PPI
VIEWING ANGLEG:	85/85/80/80 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:	QVGA Square Tft Display , NTSC Lcd Video Panel , Capacitive TFT Touch Panel

LG Display LM190E08-TLGD Application Details

Basic Detail :	Manufacturer LM190E08-TLGDModel Name Panel Type a-Si TFT-LCD , LCM Another Name LM190E08 (TL)(GD) Panel Size 19.0 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG Display LM190E08-TLGD Optical Details

Basic Detail :	Luminance 300 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) (Transmissive) Good View at 6 o'clock Response Speed 1.3/3.7 (Typ.)(Tr/Td) ms Viewing Angle 85/85/80/80 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Variation 1.33 (Max.)(9 points)

LG Display LM190E08-TLGD Mechanical Details

Pixel Features :	Number of Pixel 1280(RGB)×1024, SXGA Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.098×0.294 mm Pixel Pitch(W×H) 0.294×0.294 mm [86PPI]
Physical Size :	Active Viewing 376.32(W)×301.056(H) mm Overall Dim. 396(W)×324(H) mm Bezel Opening 380.3(W)×305.0(H) mm Overall Depth 12.1/16.0 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 5:4 Shape Style Normal bezel
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Mass 1.95/2.05Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)

LG Display LM190E08-TLGD Interface Detail

Signal Electrical :	Input Current 840/966mA (Typ./Max.) Input Voltage 5.0V (Typ.) Consumption 4.2/4.83W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment UJU IS100-L30O-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160A

LG Display LM190E08-TLGD Lightting Details

Lamp Features :	Lamp Type CCFL Amount 4 pcs Position Edge light type (Top and Bottom) Exchange - Lamp Shape Straight Lamp Life 50K(Min.) (Hours)
Lamp Electrical :	Input Voltage 675/685/790V (Min./Typ./Max.) Input Current 3.0/7.5/8.0mA (Min./Typ./Max.) Frequency 40/70KHz (Min./Max.) Turn-on Voltage 1100/1400V (Max.)(Ta=+25/0℃) Consumption 20.55/22.61W (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment YEONHO 35001HS-02LD 3.5 mm 2 pins 4 pcs BLL-2PINS-HL
Backlight Driver :	No

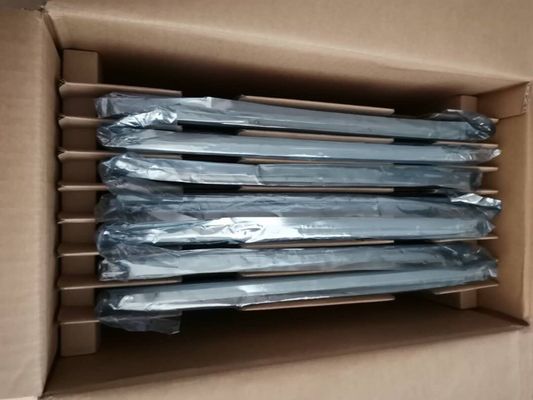

LG Display LM190E08-TLGD Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	8 pcs / box	-	374×318×474 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
