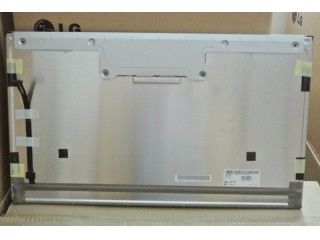

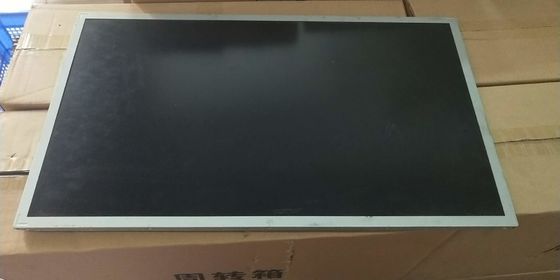

Product Details:
|
| MODEL NUMBER: | LM270WQ1-SLB1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 [Quad-HD] 108PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 2560x1440 TFT LCD Panel,TFT LCD Panel 400cd/m2,27.0" Square Tft Display |
||
| Basic Detail : | Manufacturer | Model Name | LM270WQ1-SLB1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM270WQ1 (SL)(B1) | |
| Panel Size | 27.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | H-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.325 | Support Color | 1.07B (10-bit) |
| Color Temperature | 6799K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 77% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 2560(RGB)×1440 [Quad-HD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0777×0.2331 mm | Pixel Pitch(W×H) | 0.2331×0.2331 mm [108PPI] | |
| Physical Size : | Active Viewing | 596.736(W)×335.664(H) mm | Overall Dim. | 630(W)×368.2(H) mm |
| Bezel Opening | 601.7(W)×340.6(H) mm | Overall Depth | 8.76/15.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 3.80Kgs (Typ.) | Surface | Glare (Haze 0%), Hard coating (2H), Antireflection |
| Signal Electrical : | Input Current | 890/1020mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 10.7/12.4W (Typ./Max.) | Signal Interface | LVDS (4 ch, 8/10-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| JAE | FI-RE41S-HF | 1 pcs | 0.5 mm | 41 pins | ||
| Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 4 strings | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 350/365mA (Typ./Max.) | Input Voltage | 48±5V | ||
| Consumption | 72/79.5W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | H401K-D06N-12B | 1 pcs | 2.0 mm | 6 pins | BLE-6PINS-CCAACC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 7 pcs / box | 747×335×466 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
