1920x1080 157PPI Square Tft Screen 250cd/M2 LP140WFA-SPD1 80/80/80/80 (Typ.)(CR≥10)

1920x1080 157PPI Square Tft Screen 250cd/M2 LP140WFA-SPD1 80/80/80/80 (Typ.)(CR≥10)
1920x1080 157PPI Square Tft Screen 250cd/M2 LP140WFA-SPD1 80/80/80/80 (Typ.)(CR≥10) 1920x1080 157PPI Square Tft Screen 250cd/M2 LP140WFA-SPD1 80/80/80/80 (Typ.)(CR≥10) 1920x1080 157PPI Square Tft Screen 250cd/M2 LP140WFA-SPD1 80/80/80/80 (Typ.)(CR≥10)

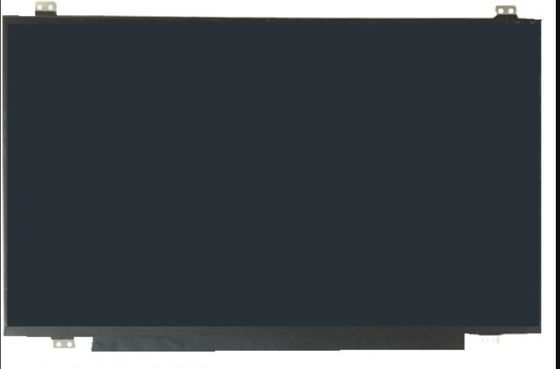

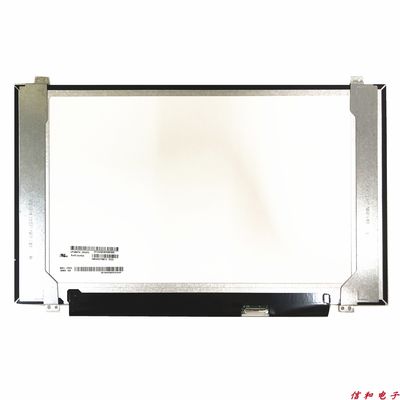

Large Image :  1920x1080 157PPI Square Tft Screen 250cd/M2 LP140WFA-SPD1 80/80/80/80 (Typ.)(CR≥10)

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP140WFA-SPD1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 500PCS
Contact Now

1920x1080 157PPI Square Tft Screen 250cd/M2 LP140WFA-SPD1 80/80/80/80 (Typ.)(CR≥10)

Description
MODEL NUMBER: LP140WFA-SPD1 BRAND: LG DISPLAY
SIZE: 14.0 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 157PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

1920x1080 Square Tft Screen

,

157PPI Square Tft Screen

,

250cd/M2 Lcd Video Module

LG Display LP140WFA-SPD1 Application Details

Basic Information :
Brand

LP140WFA-SPD1Model
Type
a-Si TFT-LCD , LCM
Used For

14.0 inchScreen Size
Alias
LP140WFA (SP)(D1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C





LG Display LP140WFA-SPD1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.0537×0.1611 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.1611×0.1611 (H×V) [157PPI]
Mechanical Size :
Active Area(mm)
309.31(H) × 173.99(V)
Bezel Area(mm)
-
Outline Dim.(mm)
315.81(H) × 198.07(V)
Depth(mm)
3.0 (Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Without
Other Spec :
Weight
280g (Max.)
Treatment
-



LG Display LP140WFA-SPD1 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
262K (6-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
45%
sRGB
63% coverage
Adobe RGB
47% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP140WFA-SPD1 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
190/212mA (Typ./Max.)
Consumption
0.63/0.7W (Typ./Max.)
Signal Type :

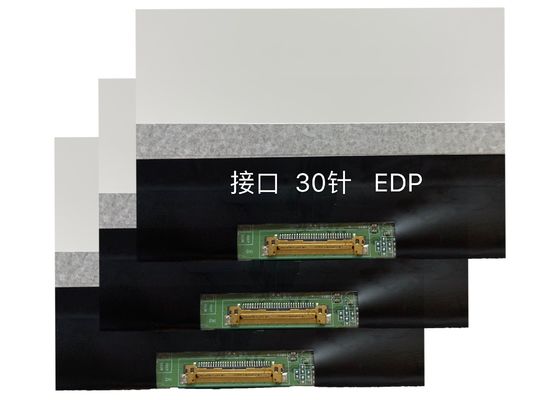

eDP (2 Lanes), eDP1.3, HBR1 (2.7G/lane)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



LG Display LP140WFA-SPD1 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
5.0/12.0/21.0V (Min./Typ./Max.)
Current Supply
198/205mA (Typ./Max.)
Consumption
2.37/2.46W (Typ./Max.)



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
