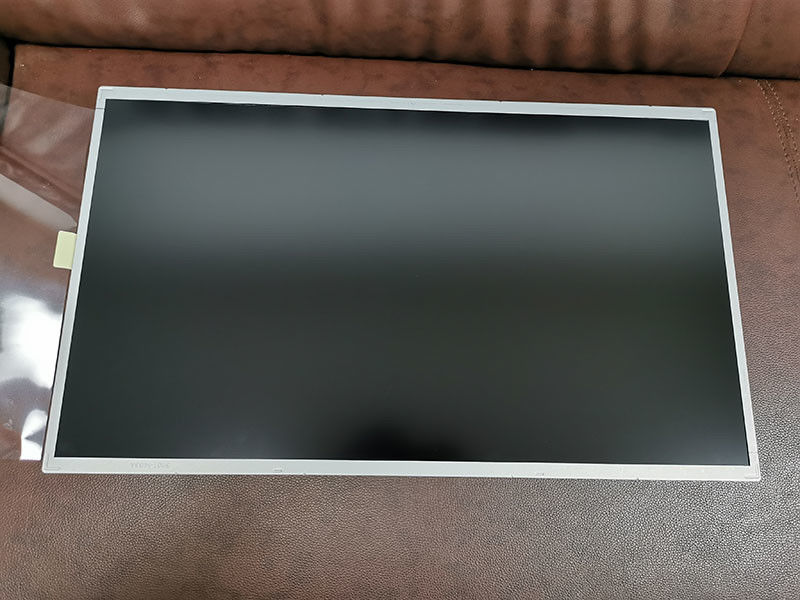

23.8" 3840x2160 300cd/M2 Industrial Lcd Display LM238WR2-SLA1

Large Image : 23.8" 3840x2160 300cd/M2 Industrial Lcd Display LM238WR2-SLA1

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM238WR2-SLA1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	500PCS

Contact Now

23.8" 3840x2160 300cd/M2 Industrial Lcd Display LM238WR2-SLA1

Description

MODEL NUMBER:	LM238WR2-SLA1	BRAND:	LG DISPLAY
SIZE:	23.8 Inch	BRIGHTNESS:	300CD/M2
Lamp Type:	WLED	RESOLUTION:	3840(RGB)×2160 [UHD] 185PPI
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:	3840x2160 Industrial Lcd Display , 300cd/m2 Industrial Lcd Display , LM238WR2-SLA1

LG Display LM238WR2-SLA1 Application Details

Basic Detail :	Manufacturer LM238WR2-SLA1Model Name Panel Type a-Si TFT-LCD , LCM Another Name LM238WR2 (SL)(A1) Panel Size 23.8 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG Display LM238WR2-SLA1 Optical Details

Basic Detail :	Luminance 300 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14 (Typ.)(G to G) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 1.07B (8-bit + Hi-FRC) Color Temperature 6485K White Variation 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 82% sRGB 100% coverage Adobe RGB 79% coverage DCI-P3 84% coverage Rec.2020 61% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM238WR2-SLA1 Mechanical Details

Pixel Features :	Number of Pixel 3840(RGB)×2160, UHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.04575×0.13725 mm Pixel Pitch(W×H) 0.13725×0.13725 mm [185PPI]
Physical Size :	Active Viewing 527.04(W)×296.46(H) mm Overall Dim. 545(W)×323.4(H) mm Bezel Opening 530.2(W)×299.6(H) mm Overall Depth 8.1/14.9 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style Normal bezel
Other Detail :	Mass 1.91/2.10Kgs (Typ./Max.) Surface Antiglare, Hard coating (3H)

LG Display LM238WR2-SLA1 Interface Detail

Signal Electrical :	Input Current 770/962mA (Typ./Max.) Input Voltage 10.0V (Typ.) Consumption 7.7/9.62W (Typ./Max.) Signal Interface LVDS (8 ch, 10-bit)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment UJU IS050-C51B-C39-A 0.5 mm 51 pins 1 pcs UJU IS050-C41B-C39-A 0.5 mm 41 pins 3 pcs

LG Display LM238WR2-SLA1 Lightting Details

Lamp Features :	Lamp Type WLED Amount 16S4P Position Edge light type Exchange - Lamp Shape 4 strings Lamp Life 30K(Min.) (Hours)
Lamp Electrical :	Input Voltage 48.8±3.2V Input Current 120/125mA (Typ./Max.) Consumption 23.4/25.0W (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST SM06B-SHJH(HF) 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Backlight Driver :	No

LG Display LM238WR2-SLA1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	12 pcs / box	-	635×370×400 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
