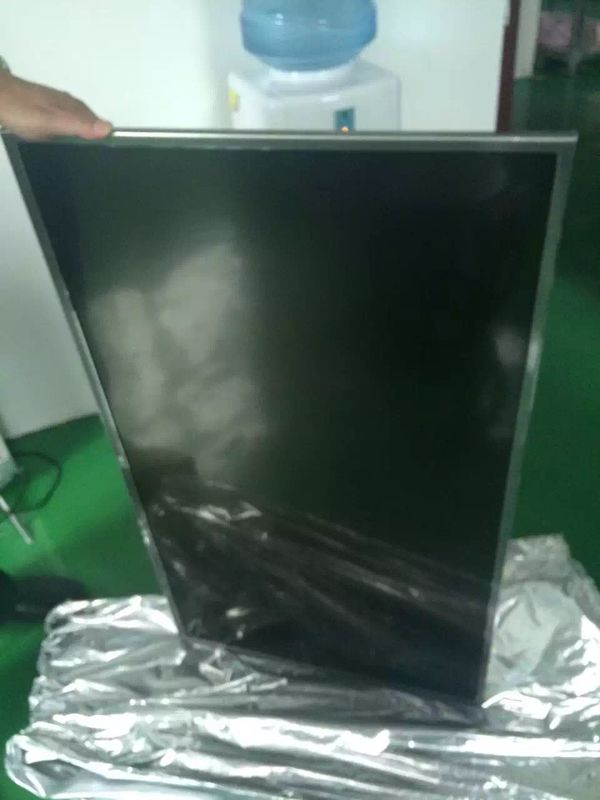

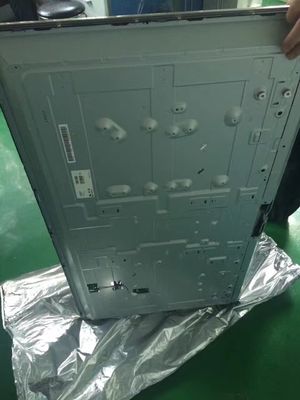

19.0" 1440x900 Industrial TFT Display 250cd/m2 89PPI LM190WX2-TLB1

19.0" 1440x900 Industrial TFT Display 250cd/m2 89PPI LM190WX2-TLB1
19.0" 1440x900 Industrial TFT Display 250cd/m2 89PPI LM190WX2-TLB1 19.0" 1440x900 Industrial TFT Display 250cd/m2 89PPI LM190WX2-TLB1 19.0" 1440x900 Industrial TFT Display 250cd/m2 89PPI LM190WX2-TLB1

Large Image :  19.0" 1440x900 Industrial TFT Display 250cd/m2 89PPI LM190WX2-TLB1

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM190WX2-TLB1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 350PCS
Contact Now

19.0" 1440x900 Industrial TFT Display 250cd/m2 89PPI LM190WX2-TLB1

Description
MODEL NUMBER: LM190WX2-TLB1 BRAND: LG DISPLAY
SIZE: 19.0 INCH BRIGHTNESS: 250 Cd/m² (Typ.)
Lamp Type: WLED RESOLUTION: 1440(RGB)×900 (WXGA+) 89PPI
VIEWING ANGLEG: 85/85/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

1440x900 Industrial TFT Display

,

19.0" Industrial TFT Display

,

89PPI TFT LCD Panel

LG Display LM190WX2-TLB1 Application Details

Basic Detail :
Manufacturer

LM190WX2-TLB1Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM190WX2 (TL)(B1)
Panel Size
19.0 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM190WX2-TLB1 Optical Details

Basic Detail :
Luminance
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
6 o'clock
Response Speed
1.3/3.7 (Typ.)(Tr/Td) ms
Viewing Angle
85/85/80/80 (Typ.)(CR≥10)
Operating Mode
TN, Normally White, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
97% coverage
Adobe RGB
75% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM190WX2-TLB1 Mechanical Details

Pixel Features :
Number of Pixel
1440(RGB)×900, WXGA+
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0945×0.2835 mm
Pixel Pitch(W×H)
0.2835×0.2835 mm [89PPI]
Physical Size :
Active Viewing
408.24(W)×255.15(H) mm
Overall Dim.
428(W)×278(H) mm
Bezel Opening
412.2(W)×259.0(H) mm
Overall Depth
8.6/10.7 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:10
Shape Style
Normal bezel
Fixation :
Side mounting holes (4-M3) on left, right bezel
Other Detail :
Mass
1.40Kgs (Typ.)
Surface
Antiglare, Hard coating (3H)



LG Display LM190WX2-TLB1 Interface Detail

Signal Electrical :
Input Current
970±150mA
Input Voltage
5.0V (Typ.)
Consumption
4.2/4.85W (Typ./Max.)
Signal Interface
LVDS (2 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
LS Mtron
GT103-30S-HF15-E2500
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160C



LG Display LM190WX2-TLB1 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
13S2P
Position
Edge light type (Right side)
Exchange
-
Lamp Shape
2 strings
Lamp Life
30K(Min.) (Hours)
Lamp Electrical :
Input Voltage
39.0±2.6V
Input Current
75/80mA (Typ./Max.)
Consumption
5.9/46.2W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
1 pcs
BLE-6PINS-CNAANC

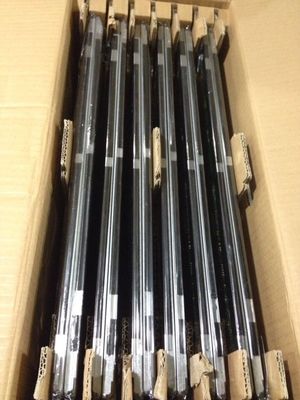

LG Display LM190WX2-TLB1 Packing Details

Package Box : Amount Size (L×W×H) Weight
12 pcs / box - 350×300×470 mm


Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
