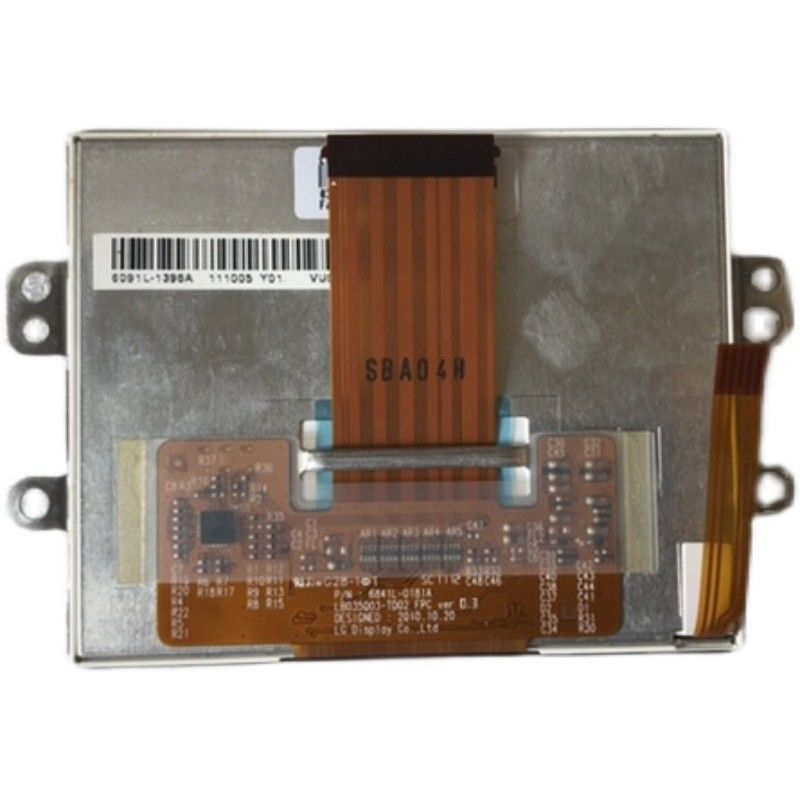

Product Details:
|
| MODEL NUMBER: | LB035Q03-TD02 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 3.5 Inch | BRIGHTNESS: | 625CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 320(RGB)×240 [QVGA] 115PPI |
| VIEWING ANGLEG: | 70/70/60/50 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | 320×240 Industrial TFT Display,625cd/m2 Industrial TFT Display,115PPI Industrial Lcd Panel |
||
| Basic Detail : | Manufacturer | Model Name | LB035Q03-TD02 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LB035Q03 (TD)(02) | |
| Panel Size | 3.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 85 °C |
| Vibration Level | 3.0G (29.4 m/s²) |
| Basic Information : | Luminance | 625 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 7/18 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.315; Wy:0.340 | Support Color | 262K (6-bit) |
| Color Temperature | 6304K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 42% | sRGB | 59% coverage |
| Adobe RGB | 44% coverage | DCI-P3 | 44% coverage | |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 320(RGB)×240 [QVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.073×0.219 mm | Pixel Pitch(W×H) | 0.219×0.219 mm [115PPI] | |
| Physical Size : | Active Viewing | 70.08(W)×52.56(H) mm | Overall Dim. | 84(W)×67(H) mm |
| Bezel Opening | 72.8(W)×55.5(H) mm | Overall Depth | 6.7/9.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4 pcs) on left & right side brackets | |||
| Other Detail : | Mass | 65.0g (Max.) | Surface | Antiglare |
| Signal Electrical : | Input Current | 20/30mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 40 pins | ||||
| Lamp Features: | Lamp Shape | 1 string | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 5S1P | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 40/45mA (Typ./Max.0 | Input Voltage | 12.0/14.0/16.5V (Min./Typ./Max.) | ||
| Consumption | 0.56/0.75W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 1.0 mm | 5 pins | BLE-5PINS-AANCC | |||
| Backlight Driver : | No | |||||

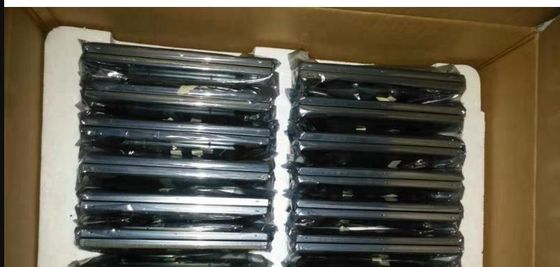

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 48 pcs / box | 478×365×162 mm | - |
