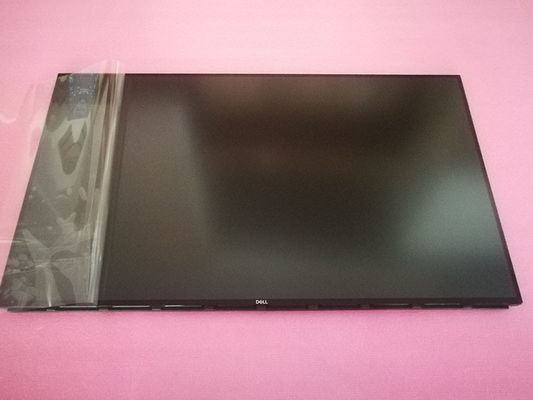

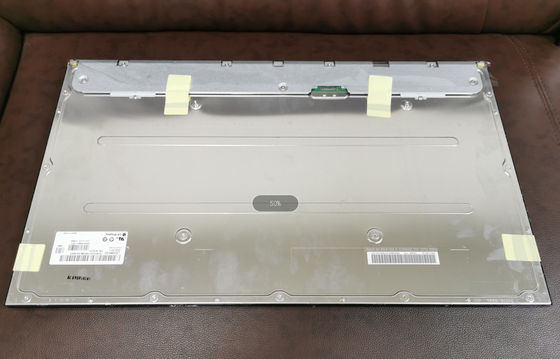

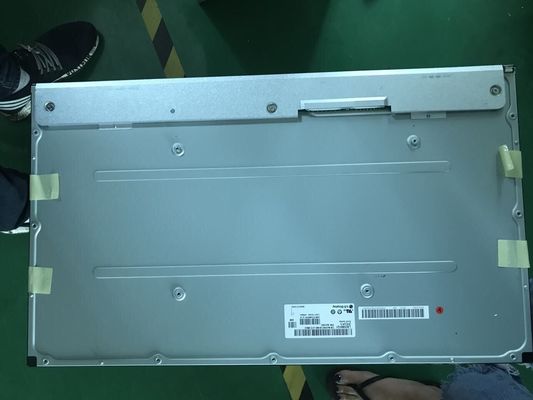

Product Details:
|
| MODEL NUMBER: | LM250WQ1-SSA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 25.0 Inch | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 [Quad-HD] 117PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 2560×1440 Industrial TFT Display,25.0" Industrial TFT Display,117PPI High Brightness LCD Panel |
||
| Basic Info : | Panel Brand | Panel Model | LM250WQ1-SSA1 | |
|---|---|---|---|---|
| Diagonal Size | 25.0" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LM250WQ1 (SS)(A1) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 2560(RGB)×1440 [Quad-HD] | Dot Pitch | 0.0720×0.2160 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2160×0.2160 mm (H×V) [117PPI] | |
| Mechanical Size : | Display Area | 552.96×311.04 mm (H×V) | Bezel Area | - |
| Outline Dim. | 565×330.7 mm (H×V) | Outline Depth | 12.8 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | 3-side borderless | |
| Holes & Brackets : | Rear mounting poles (9-M3) | |||
| Other Features : | Weight | 2.80Kgs | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | IPS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 14 (Typ.)(G to G) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 76% | sRGB | 100% coverage |
| Adobe RGB | 77% coverage | DCI-P3 | 79% coverage | |
| Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 16S4P | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 48.8±3.2V | Current Input | 105/110mA (Typ./Max.) | ||
| Consumption | 20.2/21.5W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | Lamp Driver | No | |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BM06B-SHJS-TB(HF) | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
| Signal Systerm : | LVDS (4 ch, 8-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 10.0V (Typ.) | Current Input | 575/661mA (Typ./Max.) | ||
| Consumption | 5.75/6.61W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | |||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| UJU | IS050-C51B-C39-A | 0.5 mm | 51 pins | 1 pcs | ||
| UJU | IS050-C41B-C39-A | 0.5 mm | 41 pins | 1 pcs | ||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 710×365×448 mm |
