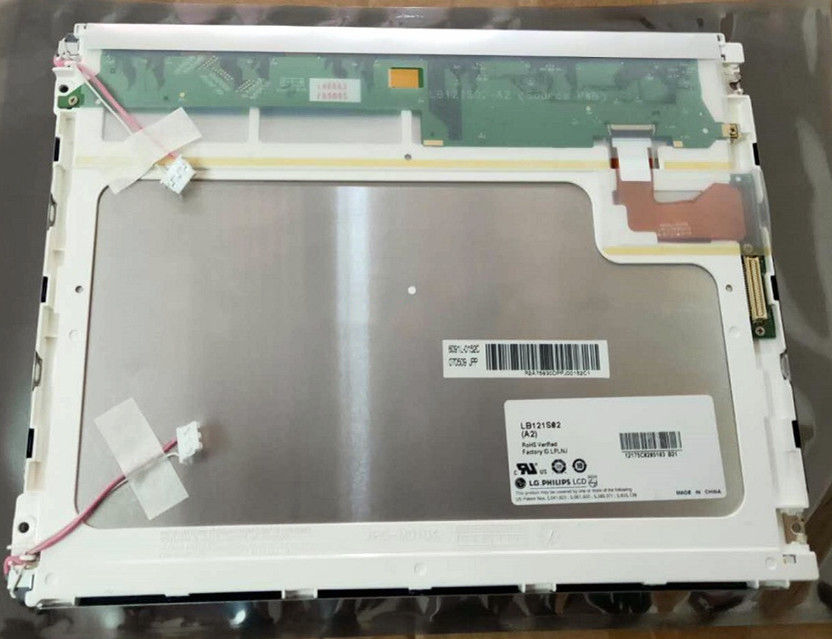

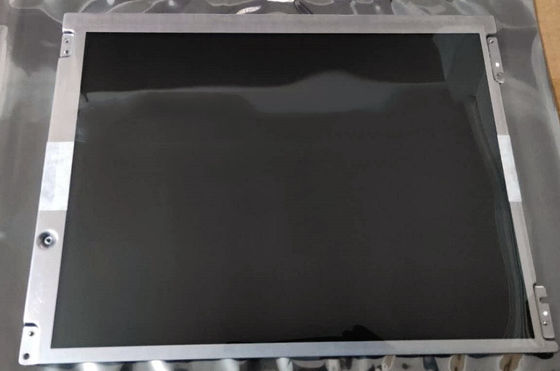

Product Details:
|
| MODEL NUMBER: | LB121S02-A2 | BRAND: | LG. LCD |
|---|---|---|---|
| SIZE: | 12.1INCH | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×600 [SVGA] 82PPI |
| VIEWING ANGLEG: | 60/60/40/55 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 12.1" Industrial TFT Display,800×600 Industrial TFT Display,TFT LCD Screen 82PPI |
||
| Basic Info : | Panel Brand | Panel Model | LB121S02-A2 | |
|---|---|---|---|---|
| Diagonal Size | 12.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | LB121S02 (A2) | |
| Reliability : | Operating Temp. | 0 ~ 50 °C | Storage Temp. | -20 ~ 60 °C |
| Pixel Features : | Pixel Format | 800(RGB)×600 [SVGA] | Dot Pitch | 0.1025×0.3075 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075×0.3075 mm (H×V) [82PPI] | |
| Mechanical Size : | Display Area | 246×184.5 mm (H×V) | Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dim. | 280×218 mm (H×V) | Outline Depth | 11.0±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.4) on left, right bezel | |||
| Other Features : | Weight | 675g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 200:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/40/55 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 20/35 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.340; Wy:0.346 | Color Numbers | 262K (6-bit) |
| Color Temperature | 5198K | White Uniformity | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 45% | sRGB | 63% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 50K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Top and Bottom) | |
| Lamp Electrical : | Voltage Input | 540/580/665V (Min./Typ./Max.) | Current Input | 3.0/6.0/8.0mA (Min./Typ./Max.) | ||
| Frequency | 30/55KHz (Min./Typ.) | Kick-off Voltage | 875/1300V (Max.)(Ta=+25/0℃) | |||
| Consumption | 7.8/8.6W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | - | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.)(VCC) | Current Input | 240mA (Typ.)(ICC) | ||
| Consumption | 0.8W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| HRS | DF9B-41P-1V | 1.0 mm | 41 pins | 1 pcs | DRGB-41P1C6B-010A | |
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 360×322×391 mm |
