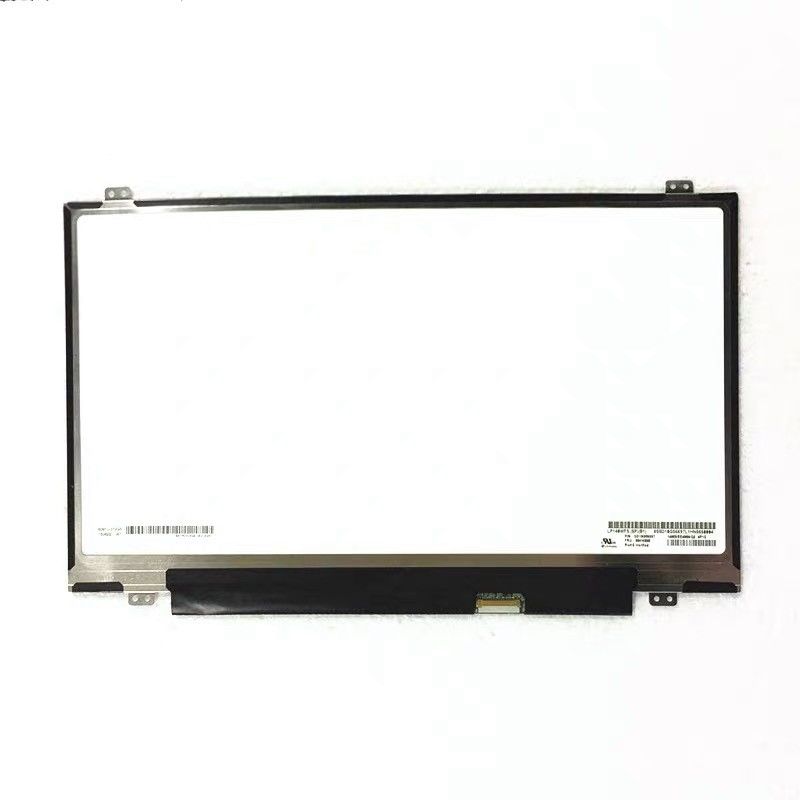

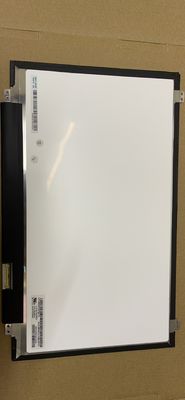

Product Details:
|
| MODEL NUMBER: | LP140QH1-SPD2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 14.0 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 [Quad-HD] 210PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 2560x1440 Industrial LCD Panel,14.0" Industrial LCD Panel,210PPI TFT LCD Display |
||
| Basic Information : | Brand | Model | LP140QH1-SPD2 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 14.0" | Alias | LP140QH1 (SP)(D2) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 2560(RGB)×1440, Quad-HD | Dot Pitch(mm) | 0.0403×0.1209 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1209×0.1209 (H×V) [210PPI] | |
| Mechanical Size : | Active Area(mm) | 309.5(H) × 174.1(V) | Bezel Area(mm) | - |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.40/1.60 (Max.)(5/13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 60% | sRGB | 84% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 45% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | eDP (4 Lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 12K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 7.0/12.0/21.0V (Min./Typ./Max.) | Current Supply | - | ||
