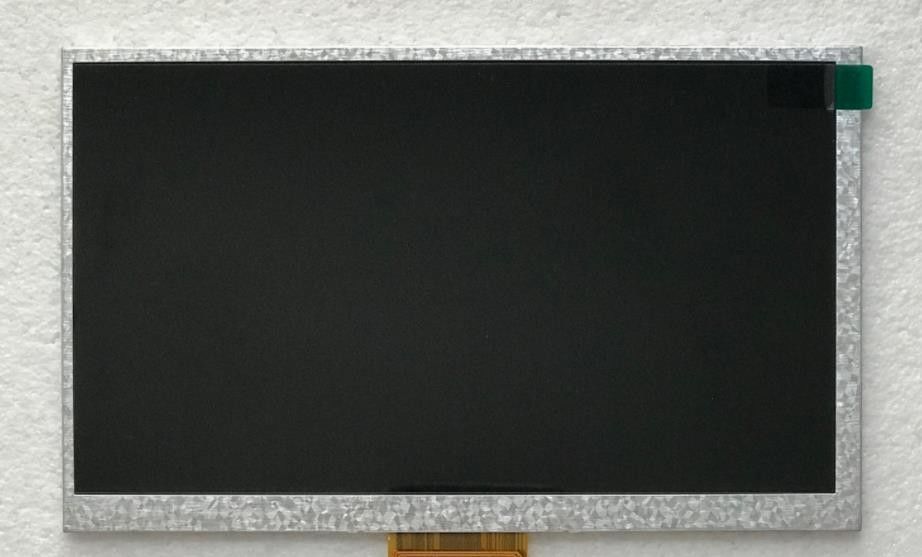

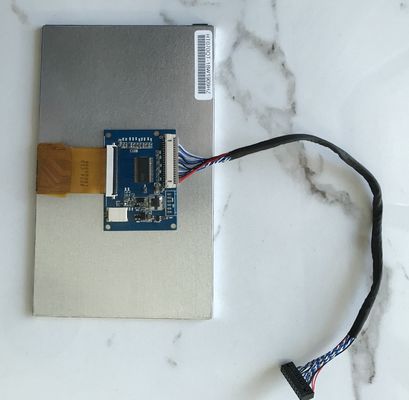

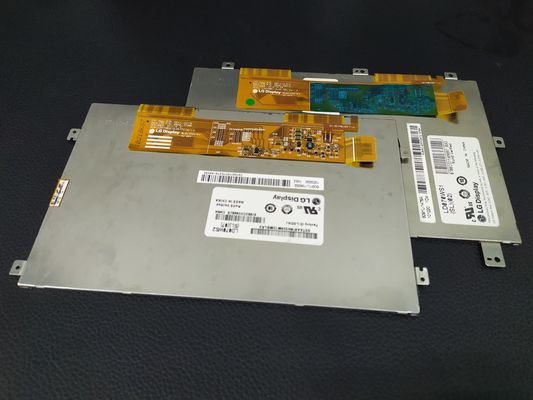

Product Details:
|
| MODEL NUMBER: | LD070WS1-SL02 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1024(RGB)×600, WSVGA, 169PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C |
| Highlight: | 400cd/M2 Round Lcd Panel,7.0" Round Lcd Panel,169PPI Lcd Display Panels |
||
| Basic Information : | Brand | Model | LD070WS1-SL02 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 7.0" | Alias | LD070WS1 (SL)(02) | |
| Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -10 ~~ 60 °C |
| Pixel Features : | Resolution | 1024(RGB)×600, WSVGA | Dot Pitch(mm) | 0.050×0.150 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.150×0.150 (H×V) [169PPI] | |
| Mechanical Size : | Active Area(mm) | 153.6(H) × 90(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 162.8(H) × 102.9(V) | Depth(mm) | 2.47±0.2 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (8 pcs) on left, right, up, down slugs | |||
| Other Spec : | Weight | 94.0/95.0g (Typ./Max.) | Treatment | Hard coating |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 50 (Max.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.340 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6551K | White Uniformity | 1.25/1.40 (Typ./Max.)(9 points) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 0.25/0.28A (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.83/0.93W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 8-bit) + SPI | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JAE | AA01B-P030VA1 | 1 pcs | 30 pins | 0.5 mm | ||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 5S4P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 16/17V (Typ./Max.) | Current Supply | 80/100mA (Typ./Max.) | ||
| Consumption | 1.28/1.36W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 36 pcs / box | - | 478×365×162 mm (L×W×H) |
