Product Details:
|

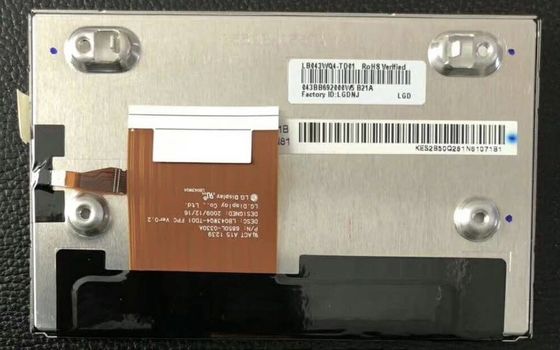

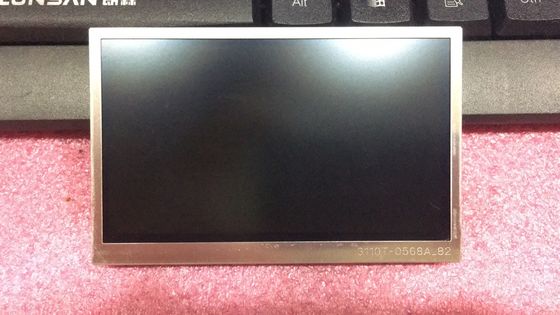

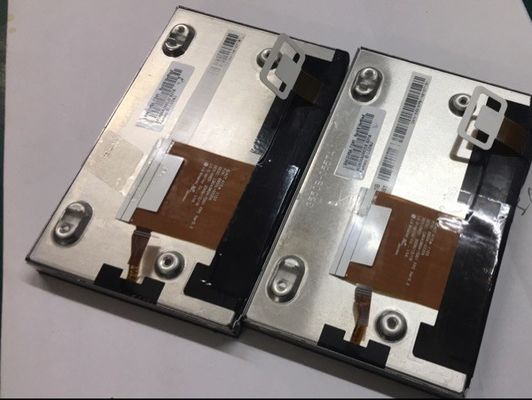

| MODEL NUMBER: | LB043WQ4-TD01 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 43 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 480(RGB)×272 [WQVGA] 128PPI |
| VIEWING ANGLEG: | 70/70/60/50 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | 480x1080 Tft Lcd Display,400cd/M2 Tft Lcd Display,128PPI Square Tft Display |
||
| Basic Information : | Brand | Model | LB043WQ4-TD01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 4.3" | Alias | LB043WQ4 (TD)(01) | |
| Environment : | Storage Temp. | -40 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 3.0G (29.4 m/s²) |
| Pixel Features : | Resolution | 480(RGB)×272, WQVGA | Dot Pitch(mm) | 0.066×0.198 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.198×0.198 (H×V) [128PPI] | |
| Mechanical Size : | Active Area(mm) | 95.04(H) × 53.856(V) | Bezel Area(mm) | 98.4(H) × 57.5(V) |
| Outline Dim.(mm) | 105.5(H) × 67(V) | Depth(mm) | 7.4 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-M2.6) | |||
| Other Spec : | Weight | 85.0g (Max.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 400 (Min.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/50 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | - | Response(ms) | 7/18 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.308; Y:0.326 | Display Colors | 262K (6-bit) |
| Color Temperature | 6788K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 62% | sRGB | 81% coverage |
| Adobe RGB | 63% coverage | DCI-P3 | 64% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3/10.4V (Typ.)(DVDD/AVDD) | Current Supply | 10/35mA (Max.)(DIDD/AIDD) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 60 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S2P | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 8.7/9.9V (Typ./Max.) | Current Supply | 75/80mA (Typ./Max.) | ||
| Consumption | 1.38/1.92W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 9 pins | 0.5 mm | BLE-9PINS-NANCCNAAN | |||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 78 pcs / box | - | 475×348×175 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
