23.0" 1920×1080 250cd/M2 Square Tft Screen 95PPI LM230WF9-SLA1

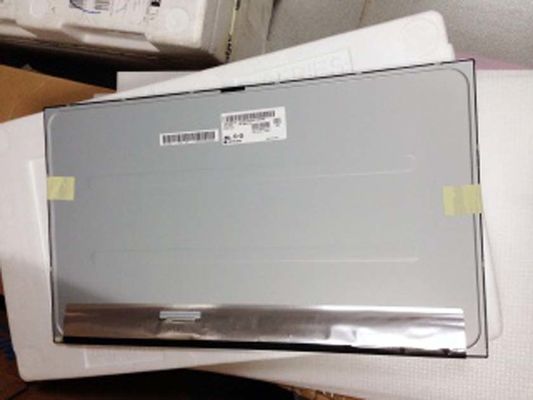

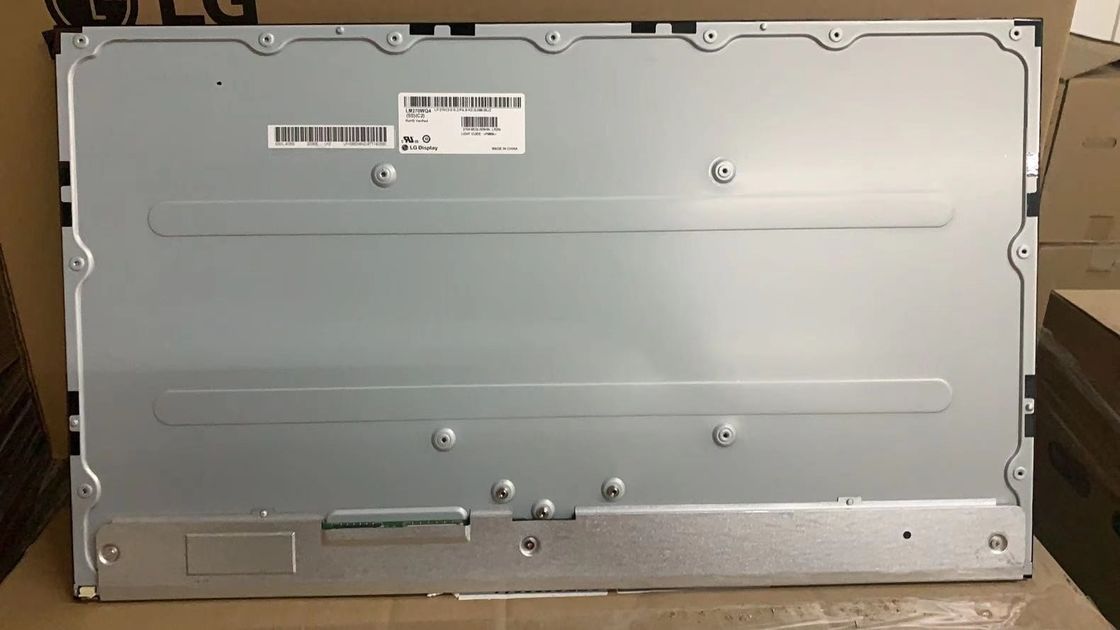

Large Image : 23.0" 1920×1080 250cd/M2 Square Tft Screen 95PPI LM230WF9-SLA1

Product Details:

Place of Origin:	JAPAN
Brand Name:	LG DISPLAY
Certification:	ISO9001
Model Number:	LM230WF9-SLA1

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	350PCS

Contact Now

23.0" 1920×1080 250cd/M2 Square Tft Screen 95PPI LM230WF9-SLA1

Description

MODEL NUMBER:	LM230WF9-SLA1	BRAND:	LG DISPLAY
SIZE:	23.0INCH	BRIGHTNESS:	250 Cd/m² (Typ.)
Lamp Type:	WLED	RESOLUTION:	1920(RGB)×1080 (FHD) 95PPI
VIEWING ANGLEG:	89/89/89/89 (Typ.)(CR≥10)	TEMPERATURE RANGE:	Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:	250cd/m2 Square Tft Screen , 23.0" Square Tft Screen , 95PPI Lcd Video Panel

LG Display LM230WF9-SLA1 Application Details

Basic Detail :	Manufacturer LM230WF9-SLA1Model Name Panel Type a-Si TFT-LCD , LCM Another Name LM230WF9 (Sl)(A1) Panel Size 23.0 inch Designed For
Maximum Ratings :	OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG Display LM230WF9-SLA1 Optical Details

Basic Detail :	Luminance 250 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive) Good View at Symmetry Response Speed 14 (Typ.)(G to G) ms Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Support Color 16.7M (6-bit + Hi-FRC) Color Temperature 6485K White Variation 1.33 (Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 72% sRGB 95% coverage Adobe RGB 74% coverage DCI-P3 75% coverage Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LM230WF9-SLA1 Mechanical Details

Pixel Features :	Number of Pixel 1920(RGB)×1080, FHD Arrangement RGB Vertical Stripe Dot Pitch(W×H) 0.0884×0.2652 mm Pixel Pitch(W×H) 0.2652×0.2652 mm [95PPI]
Physical Size :	Active Viewing 509.184(W)×286.416(H) mm Overall Dim. 522.4(W)×305.6(H) mm Bezel Opening 512.4(W)×289.65(H) mm Overall Depth 9.7/14.2 (Typ./Max.) mm
Outline Features :	Form Shape Flat Rectangle Orientation Landscape type Aspect Ratio(W:H) 16:9 Shape Style Normal bezel
Fixation :	Without
Other Detail :	Mass 1.87/1.96Kgs (Typ./Max.) Surface Antiglare (Haze 25%), Hard coating (3H)

LG Display LM230WF9-SLA1 Interface Detail

Signal Electrical :	Input Current 580/720mA (Typ./Max.) Input Voltage 5.0V (Typ.) Consumption 2.9/3.6W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment UJU IS100-L30O-C23 1.0 mm 30 pins 1 pcs LVDS-30P2C8B-160B

LG Display LM230WF9-SLA1 Lightting Details

Lamp Features :	Lamp Type WLED Amount 19S3P Position Edge light type (Bottom side) Exchange - Lamp Shape 3 strings Lamp Life 30K(Min.) (Hours)
Lamp Electrical :	Input Voltage 54.0±3.8V Input Current 50/55mA (Typ./Max.) Consumption 8.1/8.7W (Typ./Max.)
Interface Features :	Position ConnectorType
Interface Detail :	Brand Model Pitch Pins Amount Pin Assignment JST BM06B-SHJS-TB(HF) 1.0 mm 6 pins 1 pcs BLE-6PINS-CCAANC
Backlight Driver :	No

LG Display LM230WF9-SLA1 Packing Details

Package Box :	Amount	Size (L×W×H)	Weight
Package Box :	8 pcs / box	-	635×370×400 mm

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
