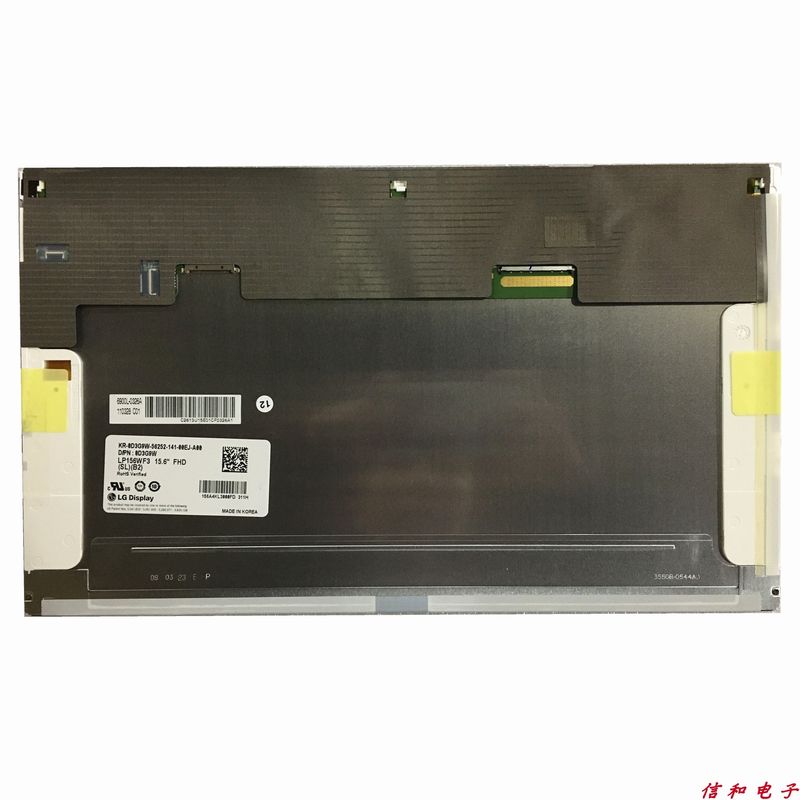

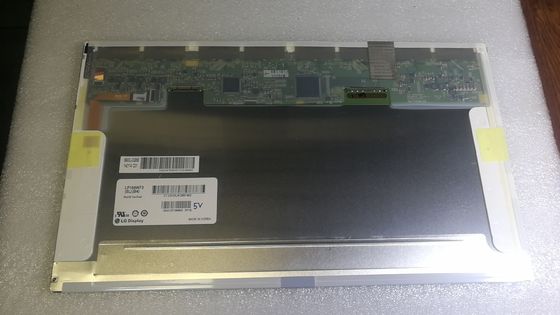

15.6" 1920×1080 210cd/M2 Square Tft Panel 141PPI LP156WF3-SLB2

15.6" 1920×1080 210cd/M2 Square Tft Panel 141PPI LP156WF3-SLB2
15.6" 1920×1080 210cd/M2 Square Tft Panel 141PPI LP156WF3-SLB2 15.6" 1920×1080 210cd/M2 Square Tft Panel 141PPI LP156WF3-SLB2

Large Image :  15.6" 1920×1080 210cd/M2 Square Tft Panel 141PPI LP156WF3-SLB2

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP156WF3-SLB2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 350PCS
Contact Now

15.6" 1920×1080 210cd/M2 Square Tft Panel 141PPI LP156WF3-SLB2

Description
MODEL NUMBER: LP156WF3-SLB2 BRAND: LG DISPLAY
SIZE: 15.6 Inch BRIGHTNESS: 210CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 (FHD) 141PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

15.6" Square Tft Panel

,

210cd/M2 Square Tft Panel

,

141PPI ILcd Display Panels

LG Display LP156WF3-SLB2 Application Details

Basic Information :
Brand

LP156WF3-SLB2 2 CompatibleModel
Type
a-Si TFT-LCD , LCM
Used For

15.6 inchScreen Size
Alias
LP156WF3 (SL)(B2), LGD0308
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LP156WF3-SLB2 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.05975×0.17925 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.17925×0.17925 (H×V) [141PPI]
Mechanical Size :
Active Area(mm)
344.16(H) × 193.59(V)
Bezel Area(mm)
348.35(H) × 197.25(V)
Outline Dim.(mm)
359.3(H) × 212.1(V)
Depth(mm)
6.9/7.2 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Wedge (PCBA Bent, T≥5.2mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (8-M2) on left, right bezel
Other Spec :
Weight
650g (Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LP156WF3-SLB2 Optical Details

Basic Information :
Luminance(cd/m²)
210 (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
S-IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
30 (Typ.)(Tr+Td); 15 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
1.07B (10-bit)
Color Temperature
6485K
White Uniformity
1.40/1.60 (Typ./Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
110%
sRGB
100% coverage
Adobe RGB
100% coverage
DCI-P3
96% coverage
Rec.2020
82% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP156WF3-SLB2 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
1.75±0.26A
Consumption
5.77±0.85W
Signal Type :
LVDS (2 ch, 10-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-VHP50S-A-HF11
0.5 mm
50 pins
1 pcs
LVDS-50P2C10B-010A



LG Display LP156WF3-SLB2 Backlight Details

Backlight Features :
Type
RGB LED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
15K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
36.3V (Max.)
Current Supply
28/50/35mA (Max.)(R/G/B)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
HRS
DF19KR-20P-1H(56)
1.0 mm
20 pins
1 pcs

Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
7.5/14.4/21.0V (Min./Typ./Max.)
Current Supply
0.98A (Typ.)
Consumption
14.1/19.5W (Typ./Max.)



LG Display LP156WF3-SLB2 Packing Details

Package Box : Quantity Weight Box Size
22 pcs / box - 460×380×293 mm (L×W×H)





Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
