14.0" 250cd/m2 High Brightness Lcd Panels 157PPI LP140WFA-SPC1

14.0" 250cd/m2 High Brightness Lcd Panels 157PPI LP140WFA-SPC1
14.0" 250cd/m2 High Brightness Lcd Panels 157PPI LP140WFA-SPC1 14.0" 250cd/m2 High Brightness Lcd Panels 157PPI LP140WFA-SPC1

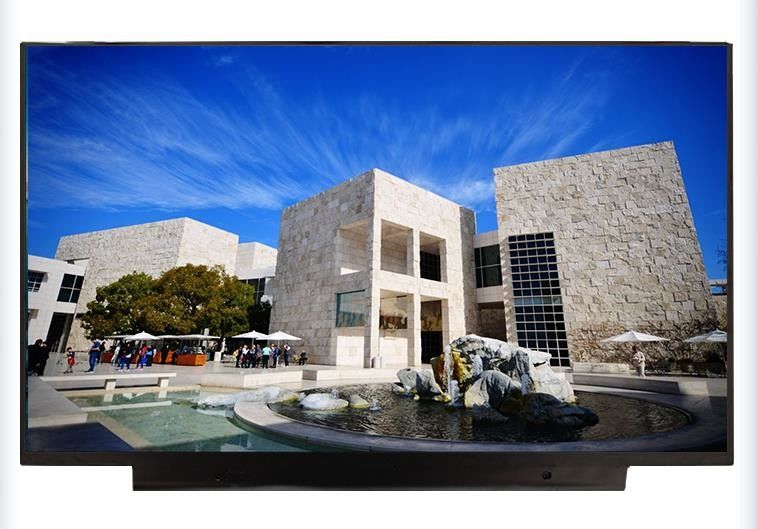

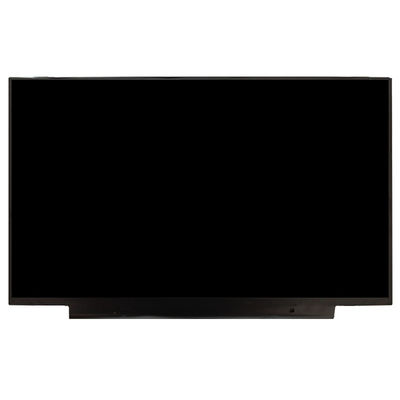

Large Image :  14.0" 250cd/m2 High Brightness Lcd Panels 157PPI LP140WFA-SPC1

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP140WFA-SPC1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 350PCS
Contact Now

14.0" 250cd/m2 High Brightness Lcd Panels 157PPI LP140WFA-SPC1

Description
MODEL NUMBER: LP140WFA-SPC1 BRAND: LG DISPLAY
SIZE: 14.0 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080, FHD, 157PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

14.0" High Brightness Lcd Panels

,

250cd/m2 High Brightness Lcd Panels

,

157PPI Square Tft Display

LG Display LP140WFA-SPC1 Application Details

Basic Info :
Panel Brand

LP140WFA-SPC1Panel Model
Diagonal Size
14.0"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP140WFA (SP)(C1)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LP140WFA-SPC1 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.0537×0.1611 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1611×0.1611 mm (H×V) [157PPI]
Mechanical Size :
Display Area
309.31×173.99 mm (H×V)
Bezel Area
-
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :
Without



LG Display LP140WFA-SPC1 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
262K (6-bit)
Color Temperature
6485K
Uniformity
-



LG Display LP140WFA-SPC1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
5.0/12.0/21.0V (Min./Typ./Max.)
Current Input
-



LG Display LP140WFA-SPC1 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No



LG Display LP140WFA-SPC1 Interface Detail

Signal Systerm :
eDP (2 Lanes), HBR1 (2.7G/lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
-
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs



 Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
