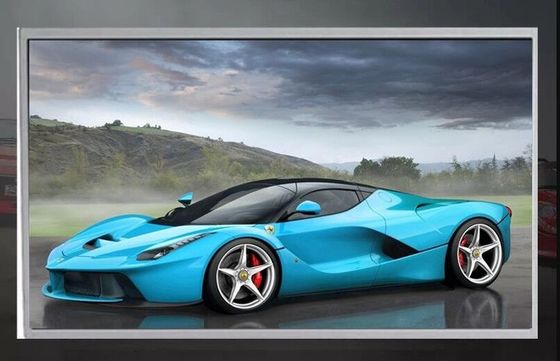

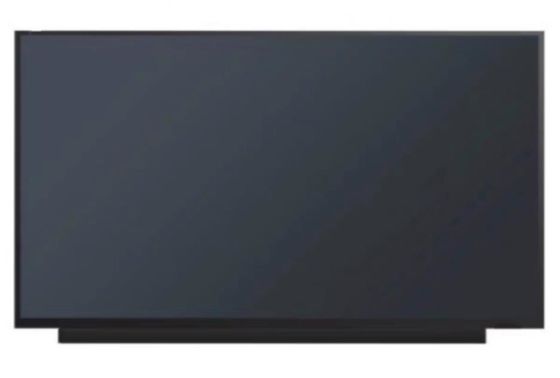

Product Details:
|
| MODEL NUMBER: | LP140QH2-SPB1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 14.0 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 (Quad-HD) 210PPI |
| VIEWING ANGLEG: | 85/85/85/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 210PPI TFT LCD Panel,2560x1440 TFT LCD Panel,14.0in Lcd Display Panels |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LP140QH2-SPB1 | a-Si TFT-LCD , LCM | LP140QH2 (SP)(B1), LGD058B | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 700 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 74% | 95% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 76% | 55% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43/1.67 (Max.)(5/13 points) | ||
| Panel Size : | 14.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1440 [Quad-HD] | RGB Vertical Stripe | 0.12081×0.12081 [210PPI] | 0.04027×0.12081 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 309.27(H) × 173.97(V) | 312.09(H) × 176.9(V) | 315.01(H) × 196.14(V) | 2.4 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Slim (PCBA Flat, T≤3.2mm) | |
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 220g (Max.) | - | Antiglare | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 15K(Min.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 5.0/12.0/21.0V (Min./Typ./Max.) | 280/290mA (Typ./Max.) | 3.36/3.46W (Typ.Max.) | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 285/316mA (Typ./Max.) | 0.94/1.04W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | KN38-40S-0.5H | 0.5 mm | 40 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 25 pcs / box | - | 410×278×244 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
