Product Details:
|

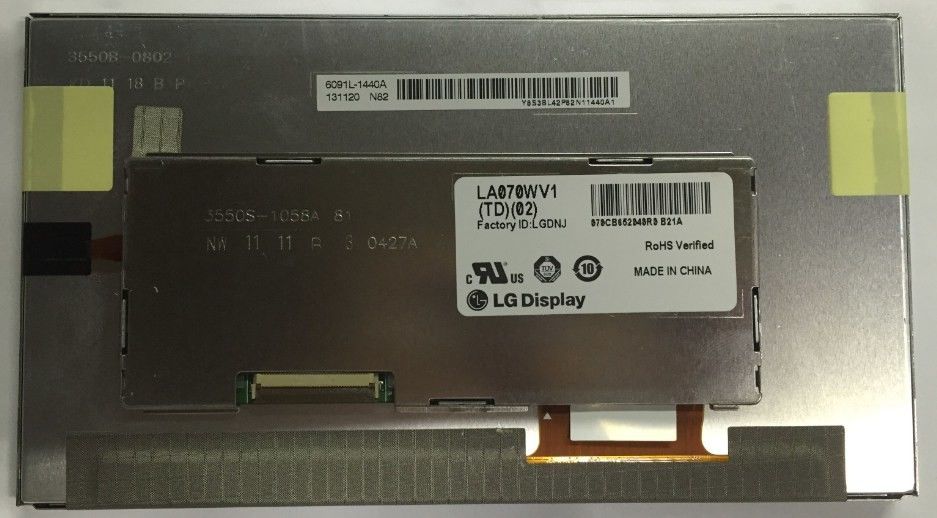

| MODEL NUMBER: | LA070WV1-TD02 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 7.0INCH | BRIGHTNESS: | 490CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 800(RGB)×480, WVGA, 134PPI |
| VIEWING ANGLEG: | 70/70/50/60 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.84G (27.8 M/s²) |
| Highlight: | 490cd/m2 Industrial Lcd Panel,800×480 Industrial Lcd Panel,134PPI Lcd Video Panel |
||
| Basic Detail : | Manufacturer | Model Name | LA070WV1-TD02 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LA070WV1 (TD)(02) | |
| Panel Size | 7.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 85 °C |
| Vibration Level | 2.84G (27.8 m/s²) | RoHS |
| Basic Information : | Luminance | 490 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 5/15 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.315 | Support Color | 262K (6-bit) |
| Color Temperature | 7435K | White Uniformity | 1.11/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 62% | sRGB | 82% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0651×0.1716 mm | Pixel Pitch(W×H) | 0.1953×0.1716 mm [134PPI] | |
| Physical Size : | Active Viewing | 156.24(W)×82.368(H) mm | Overall Dim. | 168.8(W)×93.5(H) mm |
| Bezel Opening | 158.7(W)×85.1(H) mm | Overall Depth | 7.0/11.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 17:9 | Shape Style | ||
| Fixation : | Without | |||
| Other Detail : | Mass | 210/220g (Typ./Max.) | Surface | Antiglare, Reflection 4.0% (Typ.) |
| Signal Electrical : | Input Current | 265±80mA | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.33W (Typ.) | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | FH12K-40S-0.5SH | 1 pcs | 0.5 mm | 40 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 355±106mA | Input Voltage | 12.0V (Typ.) | ||
| Consumption | 4.26W (Typ.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 54 pcs / box | 478×365×244 mm | - |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
