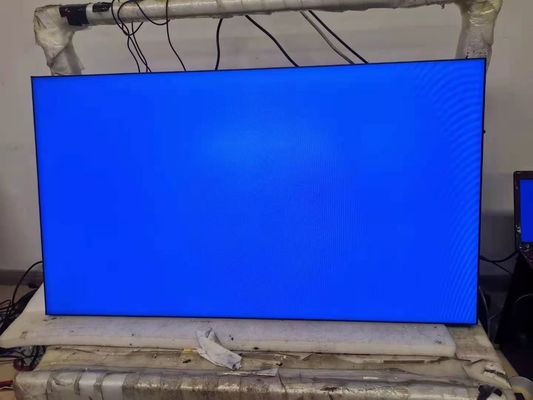

Product Details:
|
| MODEL NUMBER: | LC550EGG-FLM2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 55 Inch | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(3)×2160, UHD, 80PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 3840x2160 TFT LCD Panel,TFT LCD Panel 500cd/m2,80PPI Square Tft Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LC550EGG-FLM2 | a-Si TFT-LCD , LCM | LC550EGG (FL)(M2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 89/89/89/89 (Min.)(CR≥10) | 8 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | IPS, Normally Black, Transmissive | 1200 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 9966K | 1.07B (8-bit + Dithering) | X:0.281; Y:0.288 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 76% | 99% | 77% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.54 (Max.)(9 points) | ||
| Panel Size : | 55" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(3)×2160 [UHD] | RGBW Vertical Stripe | 0.315×0.315 [80PPI] | - | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 1209.6(H) × 680.4(V) | 1213.6(H) × 684.9(V) | 1236.92(H) × 712.51(V) | 25.71 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 12.0/12.6Kgs (Typ./Max.) | - | Antiglare (Haze 3%), Hard coating (2H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 30K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 106.6±7.2V | 110±5.5mA | 70.3/75.1W (Typ./Ma.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| UJU | HS100-L08N-N62 | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-CCCNNNNA | |
| UJU | HS100-L08N-N62-A | 1.0 mm | 8 pins | 1 pcs | BLE-8PINS-ANNNNCCC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.7V (Typ.) | 850/1105mA (Typ./Max.) | 10.8/14.04W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | EPI | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | TF06L-60S-0.5SH | 0.5 mm | 60 pins | 2 pcs | ||

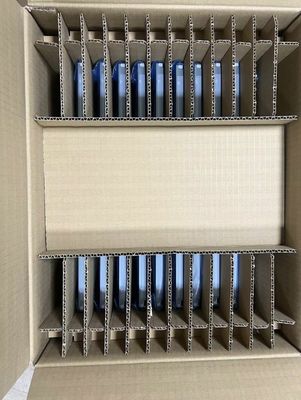

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 18 pcs / box | - | 1440×1140×960 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
