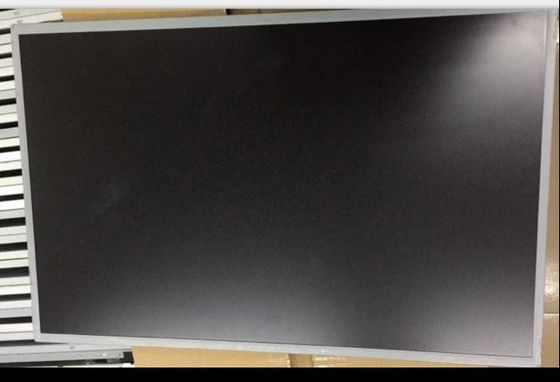

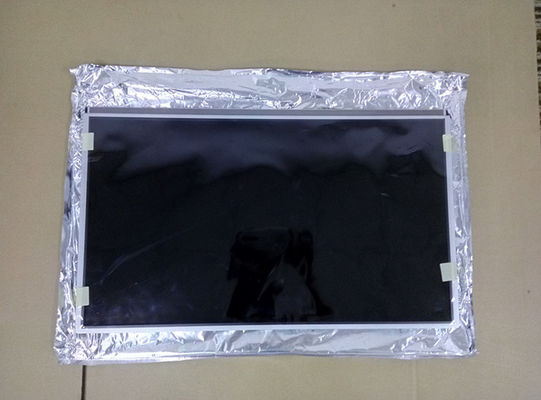

Product Details:
|
| MODEL NUMBER: | LM270WQ1-SDA2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 380CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440, Quad-HD, 108PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 2560x1440 TFT LCD Screen,380cd/m2 TFT LCD Screen,108PPI Lcd Video Module |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LM270WQ1-SDA2 | a-Si TFT-LCD , LCM | LM270WQ1 (SD)(A2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 380 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 6.5/7.5 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | H-IPS, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 77% | 100% | 77% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 79% | 57% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Size : | 27.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 2560(RGB)×1440 [Quad-HD] | RGB Vertical Stripe | 0.2331×0.2331 [108PPI] | 0.0777×0.2331 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 596.736(H) × 335.664(V) | 601.7(H) × 340.7(V) | 630(H) × 376.13(V) | 16.26/22.3 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Normal bezel | |
| Mounting : | Side mounting holes (12-M3) on left, right, up, down bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 4.60Kgs (Typ.) | - | Glare (Haze 0%), Hard coating (2H), Antireflection | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Left and Right) | 6 strings | 6 strings | 39K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 35/37.8/41V (Min./Typ./Max.) | 350/700mA (Min./Max.) | 79.38/81.55W (Tp./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| E&T | H401K-D12N-12B | 2.0 mm | 12 pins | 1 pcs | BLE-12PINS-ACACACACACAC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 1.280/1.475A (Typ./Max.) | 15.36/17.70W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| eDP (4 Lanes) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-X30SSL-HF | 1.0 mm | 30 pins | 1 pcs | EDP-30P4L-010B | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 7 pcs / box | - | 747×335×466 mm (L×W×H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
