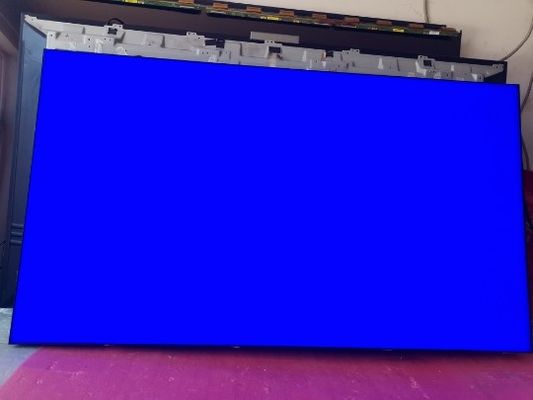

Product Details:
|
| MODEL NUMBER: | LD490EGE-FHM1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 49INCH | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(3)×2160 [UHD] 90PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 500cd/m2 TFT LCD Panel,90PPI TFT LCD Panel,3840×2160 TFT LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| LD490EGE-FHM1 | a-Si TFT-LCD , LCM | LD490EGE (FH)(M1) | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Panel Size : | 49 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 3840(3)×2160, UHD | RGBW Vertical Stripe | 0.09321×0.27963 mm | 0.27963×0.27963 mm [90PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 1073.8×604 mm | 1078.4×608.6 mm | 1097.2×630 mm | 22.6/28.9 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | - | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 10.1/10.6Kgs (Typ./Max.) | Antiglare (Haze 1%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1100:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 89/89/89/89 (Min.)(CR≥10) | Symmetry | 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 9966K | 1.07B (10-bit) | X:0.281; Y:0.288 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 95% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.54 (Max.)(9 points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 1065/1385mA (Typ./Max.) | 12.0V (Typ.) | 12.8/16.6W (Typ./Max.) | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | V-by-One 8 lane | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| UJU | IS050-C51B-C39-C | 1 pcs | 0.5 mm | 51 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 180mA (Typ.) | 158.1±12.7V | 56.9W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| GT252-2P-H73 | 1 pcs | 7 pins | BLE-7PINS-CNANCNA | |||
| Package Carton : | Amount | Weight | Carton Size |
|---|---|---|---|
| 22 pcs / box | - | 1300×1140×825 mm (L×W×H) |
