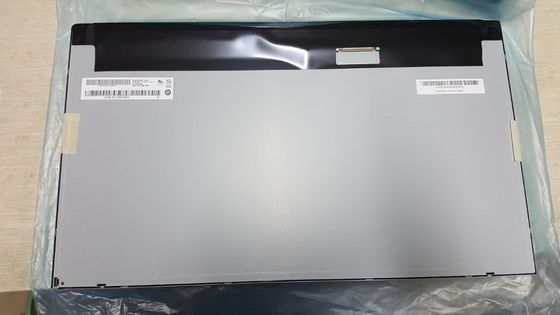

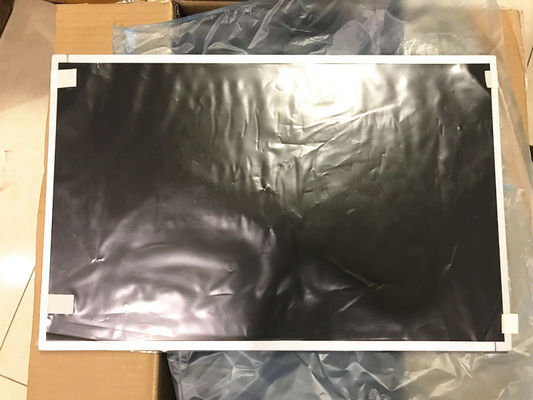

Product Details:
|
| MODEL NUMBER: | LM195WD1-TLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 19.5 Inch | BRIGHTNESS: | 250CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×900 [HD+] 94PPI |
| VIEWING ANGLEG: | 85/85/75/85 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA Industrial TFT Display,RGB Vertical LCD Display,Capacitive TFT Touch Panel |
||
| Basic Information : | Brand | Model | LM195WD1-TLA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||

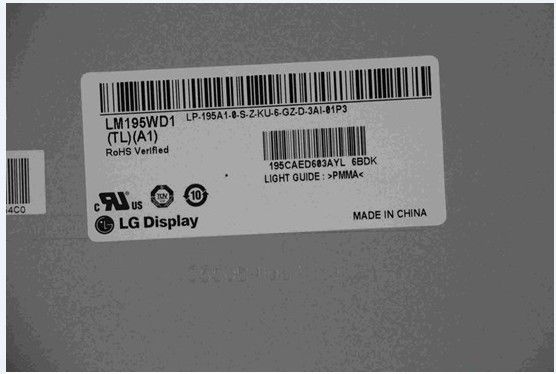

| Screen Size | 19.5" | Alias | LM195WD1 (TL)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1600(RGB)×900, HD+ | Dot Pitch(mm) | 0.0904×0.2626 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.2712×0.2626 (H×V) [94PPI] | |
| Mechanical Size : | Active Area(mm) | 433.92(H) × 236.34(V) | Bezel Area(mm) | 437.2(H) × 239.6(V) |
| Outline Dim.(mm) | 452(H) × 263(V) | Depth(mm) | 7.6/11.0 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 17:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (4-M3) on up, down bezel | |||
| Other Spec : | Weight | 1.40/1.47Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/75/85 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 1.3/3.7 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 694/798mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 3.12/3.59W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30O-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160C | |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type (Right side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 12S2P | Life Time | 30K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 37.2±2.4V | Current Supply | 120/125mA (Typ./Max.) | ||
| Consumption | 8.9/9.5W (Typ./Max.) | |||||
| Interface Features : | Position | Type | Connector | |||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| LS Mtron | GT108-6P-H26-E3500 | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Backlight Driver : | No | |||||

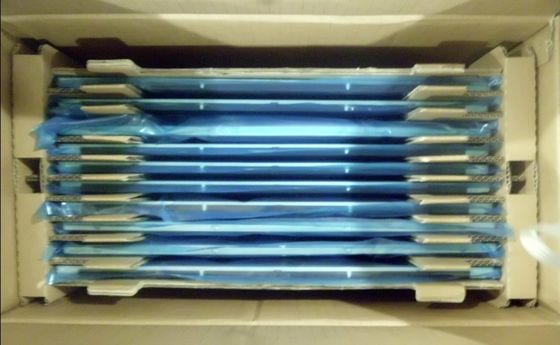

| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 14 pcs / box | - | 365×315×570 mm (L×W×H) |
