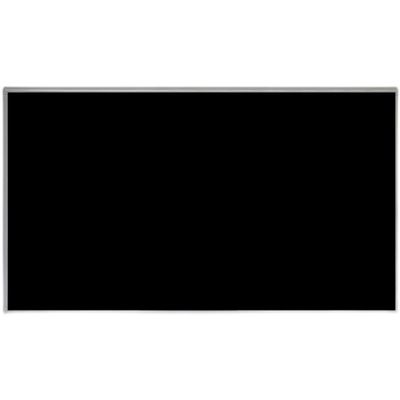

Product Details:
|
| MODEL NUMBER: | LD650EQE-FJA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 65 Inch | BRIGHTNESS: | 500CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160, UHD, 68PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA Industrial TFT Display,RGB Vertical LCD Display,Capacitive TFT Touch Panel |
||
| Basic Detail : | Manufacturer | Model Name | LD650EQE-FJA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LD650EQE (FJ)(A1) | |
| Panel Size | 65 inch | Designed For | - | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1100 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.279; Wy:0.292 | Support Color | 1.07B (8-bit + Dithering) |
| Color Temperature | 9972K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.124×0.372 mm | Pixel Pitch(W×H) | 0.372×0.372 mm [68PPI] | |
| Physical Size : | Active Viewing | 1428.48(W)×803.52(H) mm | Overall Dim. | 1452.2(W)×830(H) mm |
| Bezel Opening | 1433.4(W)×808.6(H) mm | Overall Depth | 13.5 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape / Portrait |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | 21.5/22.6Kgs (Typ./Max.) | Surface | Antiglare (Haze 28%), Hard coating (2H) |
| Signal Electrical : | Input Current | 1.32/1.72A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 15.84/20.59W (Typ./Max.) | Signal Interface | V-by-One 8 lane | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JAE | FI-RE51S-HF | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 90.2/95/99.7mA (MIn./Typ./Max.) | Input Voltage | 179±9V | ||
| Consumption | 102.1W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | HS100-L08N-N62 | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-CCCNNNNA | |
| UJU | HS100-L08N-N62-A | 1 pcs | 1.0 mm | 8 pins | BLE-8PINS-ANNNNCCC | |
| Backlight Driver : | No | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 18 pcs / box | 1700×1140×1090 mm | - |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
