Product Details:
|
| MODEL NUMBER: | LM240WU7-SLA1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 24.0 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1200, WUXGA, 94PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA Industrial TFT Display,RGB Vertical LCD Display,Capacitive TFT Touch Panel |
||
| Basic Information : | Brand | Model | LM240WU7-SLA1 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||

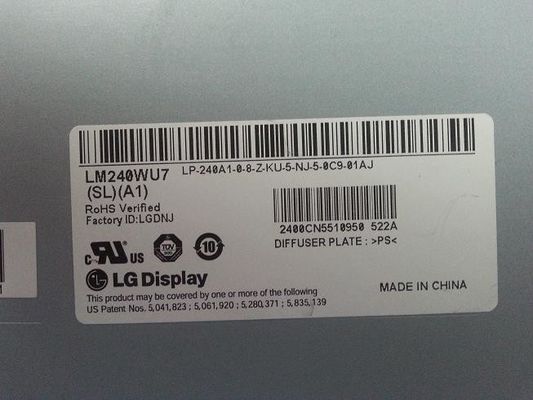

| Screen Size | 24.0" | Alias | LM240WU7 (SL)(A1) | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1920(RGB)×1200, WUXGA | Dot Pitch(mm) | 0.090×0.270 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.270×0.270 (H×V) [94PPI] | |
| Mechanical Size : | Active Area(mm) | 518.4(H) × 324(V) | Bezel Area(mm) | 522.4(H) × 328.0(V) |
| Outline Dim.(mm) | 546.4(H) × 352(V) | Depth(mm) | 35.7 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M3) | |||
| Other Spec : | Weight | 2.83/2.79Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | e-IPS, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 7.5/7.5 (Typ.)(Tr/Td); 5 (Typ.)(G to G) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 476/560/644mA (Min./Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 6.72/7.73W (Typ./Max.) | |||||
| Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| UJU | IS100-L30B-C23 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-220C | |
| Backlight Features: | Shape | U shape | Type | CCFL | Position | Direct light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6 pcs | Life Time | 50K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 1750±200V | Current Supply | 3.0/6.0/8.0mA (Min./Typ./Max.) | ||
| Frequency | 40/55/80KHz (Min./Typ./Max.) | Startup Voltage | 2500/2900V (Max.)(Ta=+25/0℃) | |||
| Consumption | 63/69.3W (Typ./Max.) | |||||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 5 pcs / box | - | 436×346×628 mm (L×W×H) |
