LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY

LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY
LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM240WU4-SLB3
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 300PCS
Contact Now

LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM240WU4-SLB3 BRAND: LG DISPLAY
SIZE: 24.0 Inch BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1200 [WUXGA] 94PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

WVGA Industrial TFT Display

,

RGB Vertical LCD Display

,

Capacitive TFT Touch Panel

LG Display LM240WU4-SLB3 Application Details

Basic Detail :
Manufacturer

LM240WU4-SLB3Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM240WU4 (SL)(B3)
Panel Size
24.0 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C



LG Display LM240WU4-SLB3 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
6/7 (Typ.)(Tr/Td); 6 (Typ.)(G to G) ms
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
1.07B (8-bit + Hi-FRC)
Color Temperature
6485K
White Variation
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
102%
sRGB
100% coverage
Adobe RGB
97% coverage
DCI-P3
93% coverage
Rec.2020
76% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM240WU4-SLB3 Mechanical Details

Pixel Features :
Number of Pixel
1920(RGB)×1200, WUXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.090×0.270 mm
Pixel Pitch(W×H)
0.270×0.270 mm [94PPI]
Physical Size :
Active Viewing
518.4(W)×324(H) mm
Overall Dim.
546.4(W)×352(H) mm
Bezel Opening
522.4(W)×328.0(H) mm
Overall Depth
28.8/40.8 (Typ./Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:10
Shape Style
Normal bezel
Fixation :
Side mounting holes (9 pcs) on left, right, up, down bezel
Other Detail :
Mass
2.74/2.88Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LM240WU4-SLB3 Interface Detail

Signal Electrical :
Input Current
462/531mA (Typ./Max.)
Input Voltage
12.0V (Typ.)
Consumption
5.54/6.38W (Typ./Max.)
Signal Interface
LVDS (2 ch, 10-bit)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
JAE
FI-RE51S-HF
0.5 mm
51 pins
1 pcs

LG Display LM240WU4-SLB3 Lightting Details

Lamp Features :
Lamp Type
CCFL
Amount
7 pcs
Position
Direct light type
Exchange
-
Lamp Shape
U shape
Lamp Life
40K(Min.) (Hours)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
YEONHO
20022WS-H14L
2.0 mm
14 pins
1 pcs

Backlight Driver :
With Inverter
Driver Electrical :
Input Voltage
24.0±2.4V
Input Current
3.0/3.5A (Typ./Max.)
Consumption
72/84W (Typ./Max.)

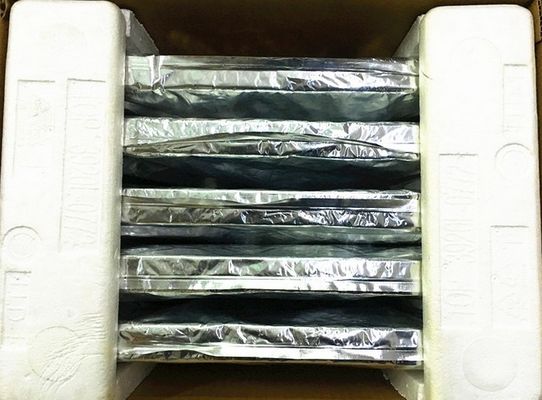

LG Display LM240WU4-SLB3 Packing Details

Package Box : Amount Size (L×W×H) Weight
5 pcs / box - 436×346×628 mm



 Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





LM240WU4-SLB3 LG Display 24.0" 1920(RGB)×1200 400 cd/m² INDUSTRIAL LCD DISPLAY 0
