LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY
LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LD550DUN-TMA2
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 300PCS
Contact Now

LD550DUN-TMA2 LG Display 55" 1920(RGB)×1080 500 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LD550DUN-TMA2 BRAND: LG DISPLAY
SIZE: 55 Inch BRIGHTNESS: 500CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 (FHD) 40PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

WVGA Industrial TFT Display

,

RGB Vertical LCD Display

,

Capacitive TFT Touch Panel

LG Display LD550DUN-TMA2 Application Details

Basic Info :
Panel Brand

LD550DUN-TMA2Panel Model
Diagonal Size
55"
Application

a-Si TFT-LCD , LCMPanel Type

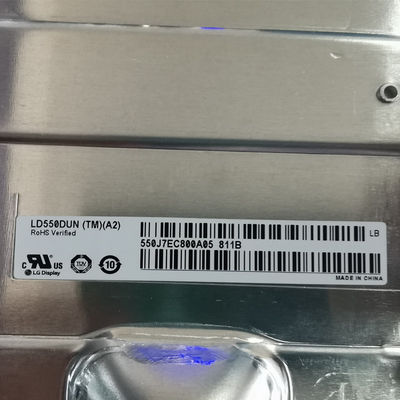

Model Alias
LD550DUN (TM)(A2)
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C



LG Display LD550DUN-TMA2 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.210×0.630 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.630×0.630 mm (H×V) [40PPI]
Mechanical Size :
Display Area
1209.6×680.4 mm (H×V)
Bezel Area
-
Outline Dim.
1210.51×681.22 mm (H×V)
Outline Depth
38.1/54.3 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape / Portrait
Aspect Ratio
16:9 (H:V)

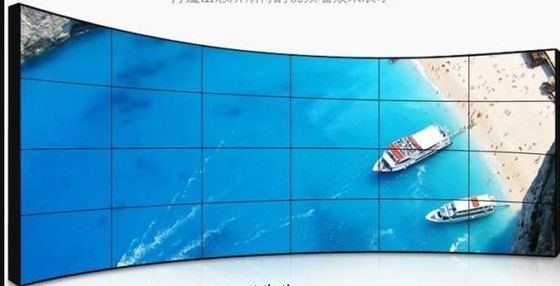

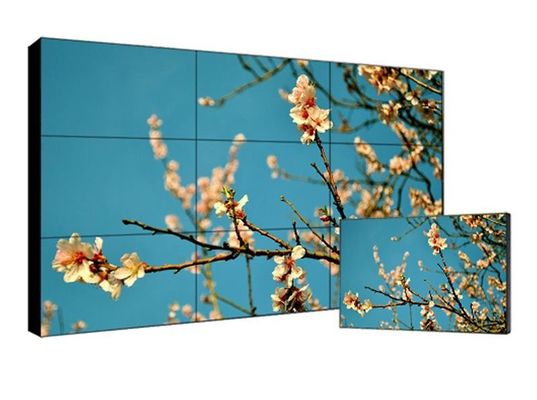

Videowall Seam
0.9 mm (Active to Active)
Other Features :
Weight
12.5/12.9Kgs (Typ./Max.)
Surface
Antiglare (Haze 3%), Hard coating (2H)



LG Display LD550DUN-TMA2 Optical Details

Basic Information :
Brightness
500 cd/m² (Typ.)
Contrast Ratio
1200:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Min.)(CR≥10)
Optical Mode
S-IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
8 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.279; Wy:0.292
Color Numbers
1.06B (8-bit + Dithering)
Color Temperature
9972K
Uniformity
1.11/1.25 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
96% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LD550DUN-TMA2 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Direct light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
YEONHO
20022WR-14B2
2.0 mm
14 pins
1 pcs

YEONHO
20022WR-12B2
2.0 mm
12 pins
1 pcs

Driver Electrical :
Voltage Input
24.0±2.4V
Current Input
8.2/9.6A (Typ./Max.)
Consumption
197/230.3W (Typ./Max.)



LG Display LD550DUN-TMA2 Interface Detail

Signal Systerm :
LVDS (2 ch, 10-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
12.0V (Typ.)
Current Input
550/715mA (Typ./Max.)
Consumption
0.66/8.58W (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-RE51S-HF
0.5 mm
51 pins
1 pcs




LG Display LD550DUN-TMA2 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
10 pcs / box - 1440×1140×950 mm



Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
