Product Details:
|
| MODEL NUMBER: | LM270WQ3-SLB2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 27.0INCH | BRIGHTNESS: | 350CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 2560(RGB)×1440 [Quad-HD] 108PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA Industrial TFT Display,RGB Vertical LCD Display,Capacitive TFT Touch Panel |
||
| Basic Detail : | Manufacturer | Model Name | LM270WQ3-SLB2 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LM270WQ3 (SL)(B2) | |
| Panel Size | 27.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 6 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AH-IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (8-bit + Hi-FRC) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 104% | sRGB | 100% coverage |
| Adobe RGB | 99% coverage | DCI-P3 | 94% coverage | |
| Rec.2020 | 77% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 2560(RGB)×1440 [Quad-HD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0777×0.2331 mm | Pixel Pitch(W×H) | 0.2331×0.2331 mm [108PPI] | |
| Physical Size : | Active Viewing | 596.736(W)×335.664(H) mm | Overall Dim. | 630(W)×368.2(H) mm |
| Bezel Opening | 602.0(W)×340.4(H) mm | Overall Depth | 13.3/18.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Normal bezel | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Mass | 3.35/3.52Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 1.05/1.37A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 9.24/12.0W (Typ./Max.) | Signal Interface | LVDS (4 ch, 10-bit) | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| UJU | IS050-C51B-C39-A | 1 pcs | 0.5 mm | 51 pins | ||
| UJU | IS050-C41B-C39-A | 1 pcs | 0.5 mm | 41 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | GB-r LED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 105/65mA (Typ.)(Green/Blue) | Input Voltage | 60/60V (Typ.)(Green/Blue) | ||
| Consumption | 40.8/43.5W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| E&T | H401K-D12N-12B | 1 pcs | 2.0 mm | 12 pins | BLE-12PINS-CCAACCCCAACC | |
| Backlight Driver : | No | |||||

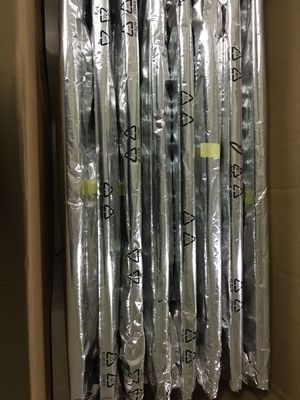

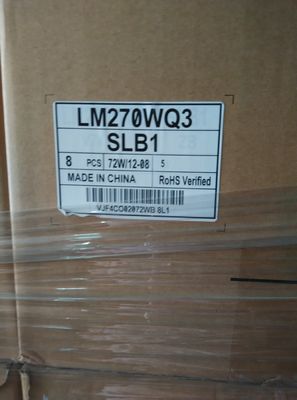

| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 8 pcs / box | 355×700×430 mm | - |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
