LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

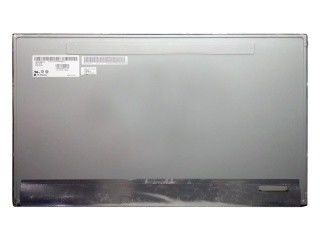

Large Image :  LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM215WF3-SLQ1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

LM215WF3-SLQ1 LG Display 21.5" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM215WF3-SLQ1 BRAND: LG DISPLAY
SIZE: 21.5inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 102PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WVGA TFT LCD Panel

,

Antiglare NEC TFT Display

,

Symmetry TFT LCD Panel

LG Display LM215WF3-SLQ1 Application Details

Basic Information :
Brand

LM215WF3-SLQ1Model
Type
a-Si TFT-LCD , LCM
Used For

21.5 inchScreen Size
Alias
LM215WF3 (SL)(Q1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LM215WF3-SLQ1 Mechanical Details

Pixel Features :
Resolution
1920(RGB)×1080, FHD
Dot Pitch(mm)
0.08265×0.24795 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.24795×0.24795 (H×V) [102PPI]
Mechanical Size :
Active Area(mm)
476.064(H) × 267.786(V)
Bezel Area(mm)
479.8(H) × 271.3(V)
Outline Dim.(mm)
497.6(H) × 292.2(V)
Depth(mm)
8.9/11.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3) on left, right bezel
Other Spec :
Weight
1.68/1.77Kgs (Typ./Max.)
Treatment
Glare (Haze 0%), Hard coating (3H), Antireflection



LG Display LM215WF3-SLQ1 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR＞10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.33 (Max.)(13 points)
1931 Color Gamlt :
NTSC Ratio
72%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
75% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM215WF3-SLQ1 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
750/940mA (Typ./Max.)
Consumption
3.75/4.7W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
UJU
IS100-L30O-C23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160A

LG Display LM215WF3-SLQ1 Backlight Details

Backlight Features :
Type
WLED
Quantity
17S2P
Position
Edge light type (Right side)
Replacement
-
Shape
2 strings
Life Time
30K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
52.7±3.4V
Current Supply
100/105mA (Typ./Max.)
Consumption
10.5/11.2W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JST
SM06B-SHJH(HF)
1.0 mm
6 pins
1 pcs
BLE-6PINS-CNAANC
Backlight Driver :
No



LG Display LM215WF3-SLQ1 Packing Details

Package Box : Quantity Weight Box Size
12 pcs / box - 365×315×570 mm (L×W×H)



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
