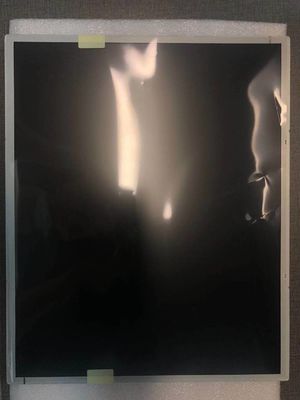

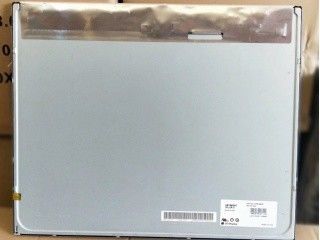

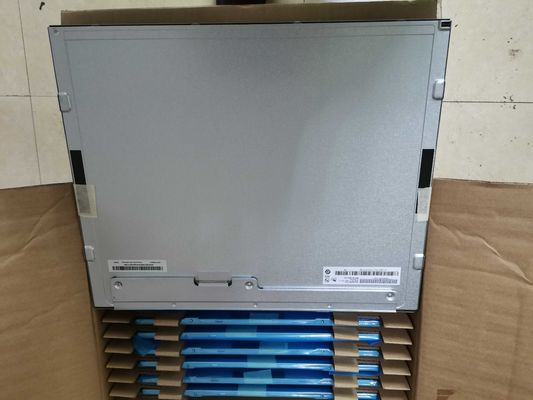

LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY
LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM190E0A-SLD5
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM190E0A-SLD5 BRAND: LG DISPLAY
SIZE: 19.0 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1280(RGB)×1024 [SXGA] 86PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WVGA TFT LCD Panel

,

Antiglare NEC TFT Display

,

Symmetry TFT LCD Panel

LG Display LM190E0A-SLD5 Application Details

Basic Detail :
Manufacturer

LM190E0A-SLD5Model Name
Panel Type
a-Si TFT-LCD , LCM
Another Name
LM190E0A (SL)(D5)
Panel Size
19.0 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS

1.0G (9.8 m/s²)Vibration Level



LG Display LM190E0A-SLD5 Mechanical Details

Pixel Features :
Pixel Format
1280(RGB)×1024, SXGA
Dot Pitch
0.098×0.294 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.294×0.294 mm (H×V) [86PPI]
Mechanical Size :
Display Area
376.32×301.056 mm (H×V)
Bezel Area
378.8×303.0 mm (H×V)
Outline Dim.
396×324 mm (H×V)
Outline Depth
8.7/10.4 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
5:4 (H:V)
Shape Style
Normal bezel
Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
1.46/1.54Kgs (Typ./Max.)
Surface
Antiglare, Hard coating (3H)



LG Display LM190E0A-SLD5 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Optical Mode
AH-IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
14 (Typ.)(G to G) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
95% coverage
Adobe RGB
74% coverage
DCI-P3
76% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM190E0A-SLD5 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
19S2P
Life Time
30K(Min.) (Hours)
Replacement
-
Lamp Shape
2 strings
Position
Edge light type (Right side)
Lamp Electrical :
Voltage Input
56.1±3.8V
Current Input
70/75mA (Typ./Max.)
Consumption
7.8/8.4W (Typ./Max.)
Interface Features :
Type
Connector
Position

NoLamp Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
YEONHO
10035WR-H06D
1.0 mm
6 pins
1 pcs
BLE-6PINS-CNAANC



LG Display LM190E0A-SLD5 Interface Detail

Signal Systerm :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
5.0V (Typ.)
Current Input
430/540mA (Typ./Max.)
Consumption
2.15/2.70W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
UJU
IS100-L30O-C23
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160B





LG Display LM190E0A-SLD5 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
14 pcs / box - 418×365×492 mm



  FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.





LM190E0A-SLD5 LG Display 19.0" 1280(RGB)×1024 250 cd/m² INDUSTRIAL LCD DISPLAY 0
