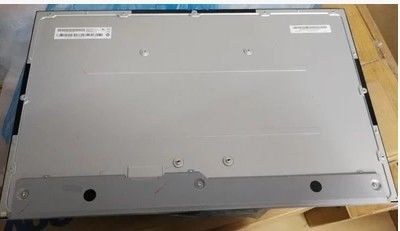

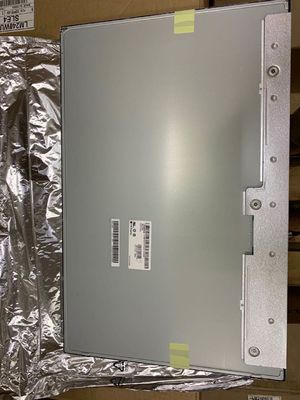

Product Details:
|
| MODEL NUMBER: | LM240WU8-SLE4 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 24.0 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGB)×1200 [WUXGA] 94PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA TFT LCD Panel,Antiglare NEC TFT Display,Symmetry TFT LCD Panel |
||

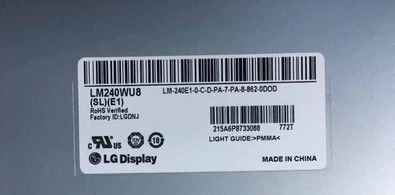

| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LM240WU8-SLE4 | a-Si TFT-LCD , LCM | LM240WU8 (SL)(E4) | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Screen Size : | 24.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1920(RGB)×1200, WUXGA | RGB Vertical Stripe | 0.090×0.270 mm | 0.270×0.270 mm [94PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 518.4×324 mm | 522.4×328.0 mm | 546.4×352 mm | 12.2 (Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 2.65/2.78Kgs (Typ./Max.) | - | Antiglare (Haze 25%), Hard coating (3H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | AH-IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 89/89/89/89 (Typ.)(CR≥10) | 14 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (6-bit + Hi-FRC) | X:0.313; Y:0.329 | |
| White Uniformity : | 1.33 (Max.)(9 points) | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Right side) | 30K(Min.) | 17S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 51.5±3.4V | 110/115mA (Typ./Max.) | 11.1/11.9W (Typ./Max.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Connector | |||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | SM06B-SHJH(HF) | 1 pcs | 6 pins | 1.0 mm | BLE-6PINS-CNAANC | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 10.0V (Typ.) | 320/400mA (Typ./Max.) | 3.15/3.93W (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| LS Mtron | GT103-30S-H23-D | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160B | |

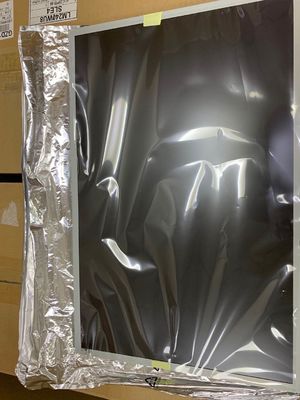

| Package Box : | Amount | Weight | Size (L×W×H) |
|---|---|---|---|
| 10 pcs / box | - | 408×355×600 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
