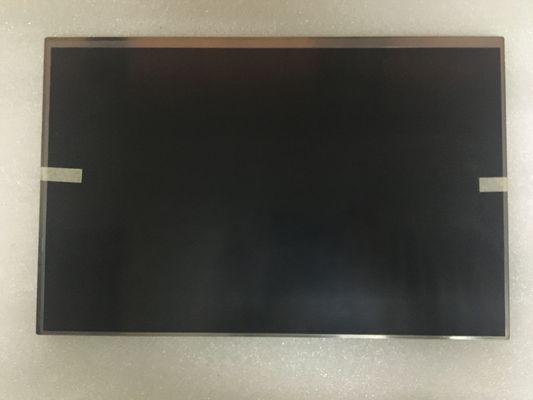

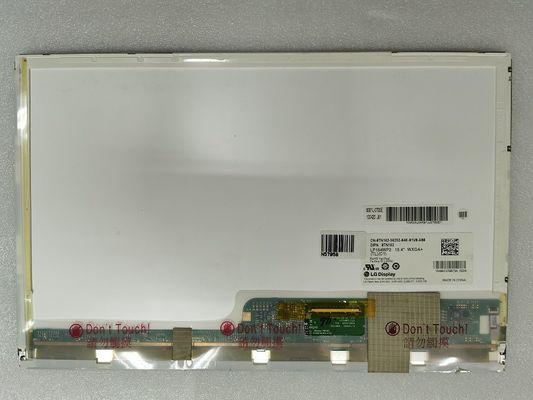

Product Details:
|
| MODEL NUMBER: | LP154WP2-TLC2 | BRAND: | LG Display |
|---|---|---|---|
| SIZE: | 15.4 Inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1440(RGB)×900 (WXGA+) 110PPI |
| VIEWING ANGLEG: | 70/70/55/65 (Typ.)(CR≥10 | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | WVGA TFT LCD Panel,Antiglare NEC TFT Display,Symmetry TFT LCD Panel |
||
| Basic Information : | Manufacturer | Panel Model 3 Compatible | Panel Type | Alias |
|---|---|---|---|---|

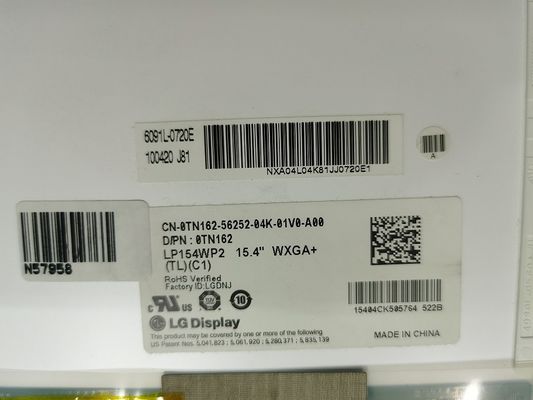

| LP154WP2-TLC2 | a-Si TFT-LCD , LCM | LP154WP2 (TL)(C2), LPL0AB8 | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 50 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 70/70/55/65 (Typ.)(CR≥10) | 16 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 47% | 66% | 50% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 49% | 35% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.60 (Max.)(13 points) | ||
| Panel Size : | 15.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1440(RGB)×900 [WXGA+] | RGB Vertical Stripe | 0.2301×0.2301 [110PPI] | 0.0767×0.2301 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 331.344(H) × 207.09(V) | 334.6(H) × 210.4(V) | 344(H) × 222(V) | 6.1 (Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:10 (H:V) | Wedge (PCBA Bent, T≥5.2mm) | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 460g (Max.) | - | Glare (Haze 0%), Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10S6P | 6 strings | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 5/19/20mA (Min./Typ./Max.) | 3.60/3.90W (Typ./Max.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Included in panel signal interface | ||||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 7.0/20.0V (Min./Max.) | ||||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 255/300/345mA (Min./Typ./Max.) | 0.99/1.44W (Typ./Max.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (2 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-VHP50S-A-HF11 | 0.5 mm | 50 pins | 1 pcs | LVDS-50P2C6B-010A | |
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 515×425×321 mm (L×W×H) |
AQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
