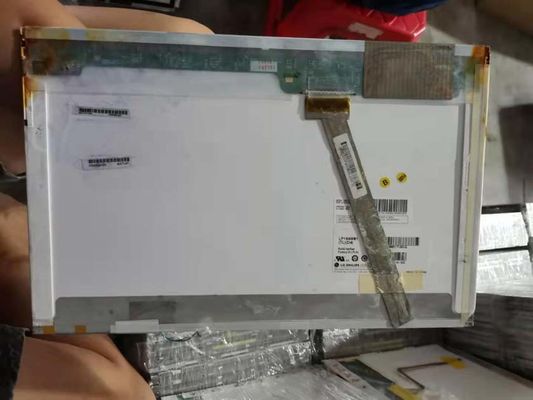

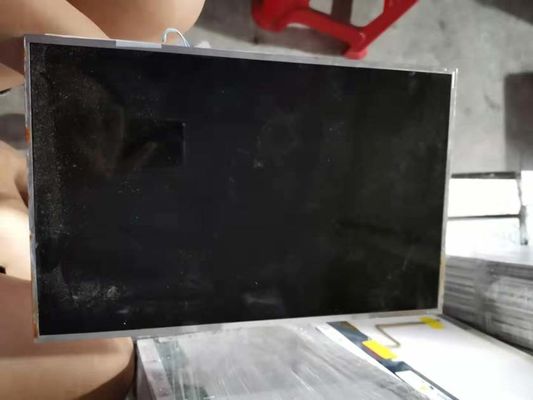

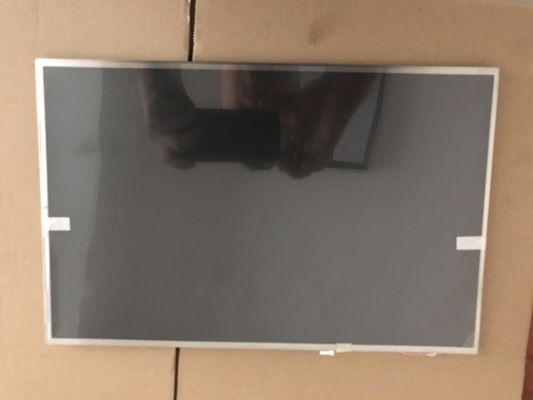

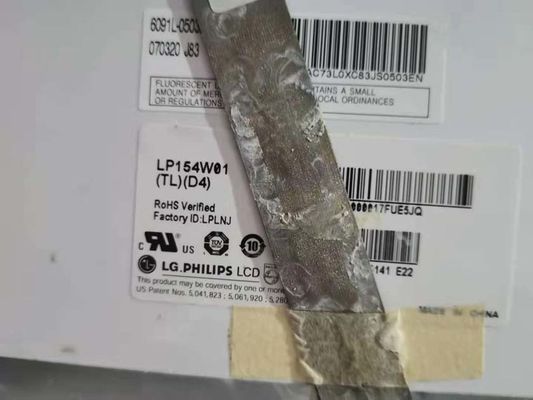

Product Details:
|
| MODEL NUMBER: | LP154W01-TP01 | BRAND: | LG. LCD |
|---|---|---|---|
| BRIGHTNESS: | 235CD/M2 | Lamp Type: | WLED |
| RESOLUTION: | 1280(RGB)×800, WXGA, 98PPI | VIEWING ANGLEG: | 45/45/15/35 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | SIZE: | 15.4 Inch |
| Highlight: | WVGA TFT LCD Panel,Antiglare NEC TFT Display,Symmetry TFT LCD Panel |
||
| Basic Information : | Brand | Model | LP154W01-TP01 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 15.4" | Alias | LP154W01 (TP)(01), LPL0000 | |
| Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
| Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.08625×0.25875 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.25875×0.25875 (H×V) [98PPI] | |
| Mechanical Size : | Active Area(mm) | 331.2(H) × 207(V) | Bezel Area(mm) | 335.0(H) × 210.7(V) |
| Outline Dim.(mm) | 344(H) × 222(V) | Depth(mm) | 6.5 (Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Wedge (PCBA Bent, T≥5.2mm) |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Mounting : | Side mounting holes (8-M2) on left, right bezel | |||
| Other Spec : | Weight | 575g (Max.) | Treatment | Glare (Haze 0%) |
| Basic Information : | Luminance(cd/m²) | 235 (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 16 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.80/2.00 (Typ./Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 47% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 290/350/410mA (Min./Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 1.2/1.4W (Typ./Max.) | |||||
| Signal Type : | LVDS (1 ch, 6-bit) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | MDF76LBRW-30S-1H | 1 pcs | 30 pins | 1.0 mm | LVDS-30P1C6B-060B | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 15K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 665/680/895V (Min./Typ./Max.) | Current Supply | 2.0/6.5/7.0mA (Min./Typ./Max.) | ||
| Frequency | 45/60/80KHz (Min./Typ./Max.) | Startup Voltage | 1170/1400V (Max.)(Ta=+25/0℃) | |||
| Consumption | 4.42/4.73W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 1 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 20 pcs / box | - | 395×390×306 mm (L×W×H) |
AQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
