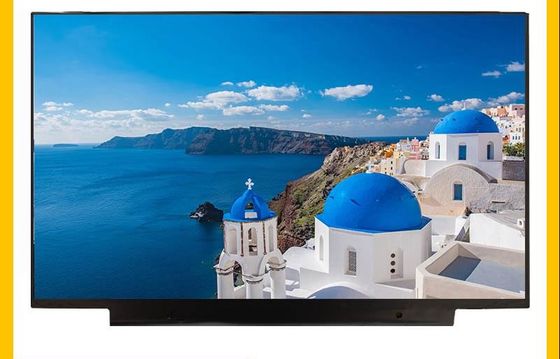

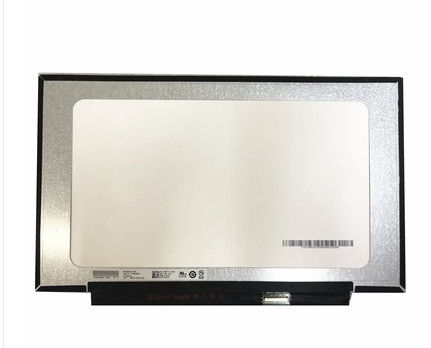

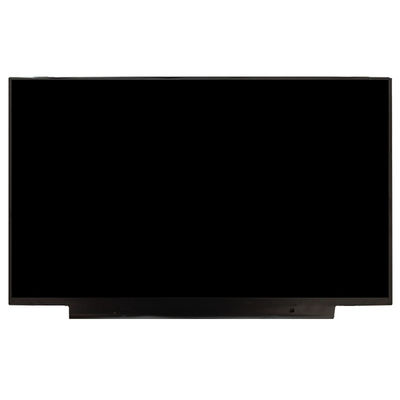

LP156WFC-SPD1 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

LP156WFC-SPD1 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY
LP156WFC-SPD1 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LP156WFC-SPD1 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY LP156WFC-SPD1 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LP156WFC-SPD1 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LP156WFC-SPD1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

LP156WFC-SPD1 LG Display 15.6" 1920(RGB)×1080 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LP156WFC-SPD1 BRAND: LG DISPLAY
SIZE: 15.6 Inch BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1920(RGB)×1080 [FHD] 141PPI
VIEWING ANGLEG: 80/80/80/80 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WVGA TFT LCD Panel

,

Antiglare NEC TFT Display

,

Symmetry TFT LCD Panel

LG Display LP156WFC-SPD1 Application Details

Basic Info :
Panel Brand

LP156WFC-SPD1Panel Model
Diagonal Size
15.6"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
LP156WFC (SP)(D1), LGD05E5
Reliability :
Operating Temp.
0 ~ 50 °C
Storage Temp.
-20 ~ 60 °C
RoHS State

1.0G (9.8 m/s²)Vibration Rating



LG Display LP156WFC-SPD1 Mechanical Details

Pixel Features :
Pixel Format
1920(RGB)×1080, FHD
Dot Pitch
0.05975×0.17925 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.17925×0.17925 mm (H×V) [141PPI]
Mechanical Size :
Display Area
344.16×193.59 mm (H×V)
Bezel Area
-
Outline Dim.
350.66×216.25 mm (H×V)
Outline Depth
3.2 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style
Slim (PCBA Flat, T≤3.2mm)
Holes & Brackets :
Without
Other Features :
Weight
360g (Max.)
Surface
Antiglare



LG Display LP156WFC-SPD1 Optical Details

Basic Information :
Brightness
250 cd/m² (Typ.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
80/80/80/80 (Min.)(CR≥10)
Optical Mode
IPS, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Color Numbers
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
Uniformity
1.25/1.67 (Max.)(5/13 points)
1931 Color Gamlt :
NTSC Ratio
45%
sRGB
64% coverage
Adobe RGB
47% coverage
DCI-P3
47% coverage
Rec.2020
34% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LP156WFC-SPD1 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
15K(Min.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
7/12/21V (Min./Typ./Max.)
Current Input
250/256mA (Typ./Max.)
Consumption
3.0/3.07W (Typ./Max.)



LG Display LP156WFC-SPD1 Interface Detail

Signal Systerm :
eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
197/218mA (Typ./Max.)
Consumption
0.65/0.72W (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
KN38B-30S-0.5H
0.5 mm
30 pins
1 pcs
EDP-30P2L-020A



LG Display LP156WFC-SPD1 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
24 pcs / box - 478×365×328 mm



AQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
