LM200WD4-SLB1 LG Display 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

LM200WD4-SLB1 LG Display 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY
LM200WD4-SLB1 LG Display 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY LM200WD4-SLB1 LG Display 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY LM200WD4-SLB1 LG Display 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

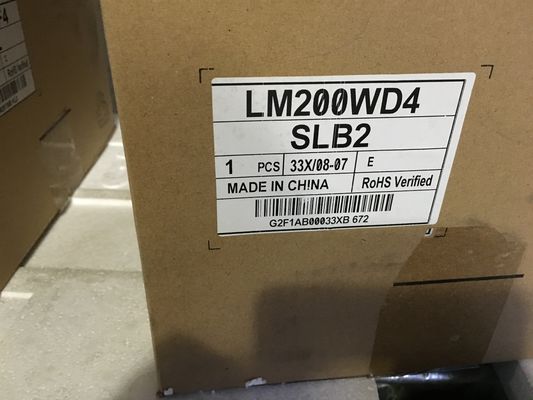

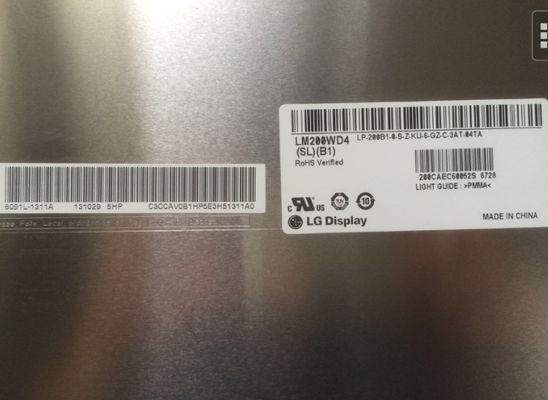

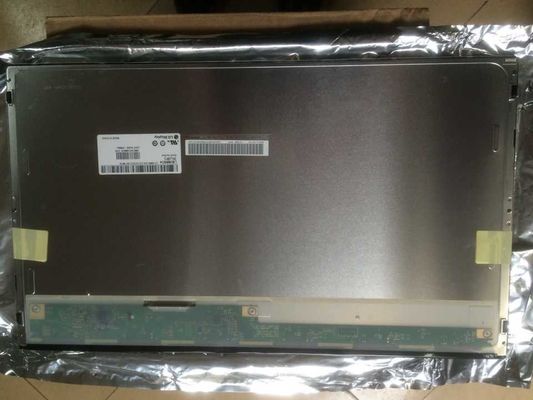

Large Image :  LM200WD4-SLB1 LG Display 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: LG DISPLAY
Certification: ISO9001
Model Number: LM200WD4-SLB1
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

LM200WD4-SLB1 LG Display 20.0" 1600(RGB)×900 250 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: LM200WD4-SLB1 BRAND: LG DISPLAY
SIZE: 20.0INCH BRIGHTNESS: 250CD/M2
Lamp Type: WLED RESOLUTION: 1600(RGB)×900 (HD+) 91PPI
VIEWING ANGLEG: 89/89/89/89 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
High Light:

WVGA TFT LCD Panel

,

Antiglare NEC TFT Display

,

Symmetry TFT LCD Panel

LG Display LM200WD4-SLB1 Application Details

Basic Information :
Brand

LM200WD4-SLB1Model
Type
a-Si TFT-LCD , LCM
Used For

20.0 inchScreen Size
Alias
LM200WD4 (SL)(B1)
Environment :
Storage Temp.
-20 ~ 60 °C
Operating Temp.
0 ~ 50 °C



LG Display LM200WD4-SLB1 Mechanical Details

Pixel Features :
Resolution
1600(RGB)×900, HD+
Dot Pitch(mm)
0.09225×0.27675 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.27675×0.27675 (H×V) [91PPI]
Mechanical Size :
Active Area(mm)
442.8(H) × 249.075(V)
Bezel Area(mm)
446.8(H) × 253.1(V)
Outline Dim.(mm)
462.8(H) × 272(V)
Depth(mm)
10.2 (Typ.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Side mounting holes (4-M3)
Other Spec :
Weight
1.12/1.18Kgs (Typ./Max.)
Treatment
Antiglare, Hard coating (3H)



LG Display LM200WD4-SLB1 Optical Details

Basic Information :
Luminance(cd/m²)
250 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
e-IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
14 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (6-bit + Hi-FRC)
Color Temperature
6485K
White Uniformity
1.33 (Max.)13 points)
1931 Color Gamlt :
NTSC Ratio
73%
sRGB
97% coverage
Adobe RGB
76% coverage
DCI-P3
76% coverage
Rec.2020
54% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



LG Display LM200WD4-SLB1 Interface Detail

Signal Electrical :
Voltage Supply
5.0V (Typ.)
Current Supply
653/750mA (Typ./Max.)
Consumption
3.27/3.75W (Typ./Max.)
Signal Type :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
LS Mtron
GT103-30S-HF15
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160C



LG Display LM200WD4-SLB1 Backlight Details

Backlight Features :
Type
WLED
Quantity
4 strings
Position
Edge light type (Bottom side)
Replacement
-
Shape
4 strings
Life Time
30K(Min.) (Hours)
Lamp Electrical :
Voltage Supply
38.4±3.6V
Current Supply
110/120mA (Typ./Max.)
Consumption
16.9/18.5W (Typ./Max.)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
YEONHO
10019HR-H06B
1.0 mm
6 pins
1 pcs
BLE-6PINS-CCAACC
Backlight Driver :
No



LG Display LM200WD4-SLB1 Packing Details

Package Box : Quantity Weight Box Size
12 pcs / box - 355×305×560 mm (L×W×H)



AQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
