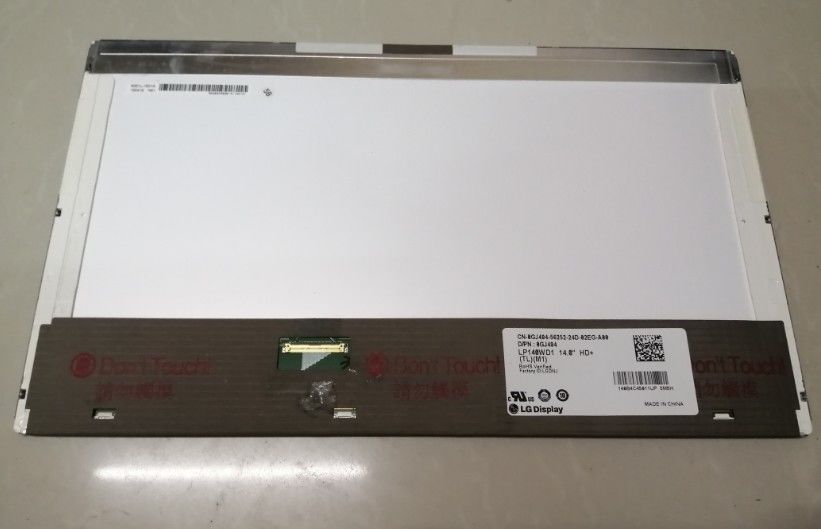

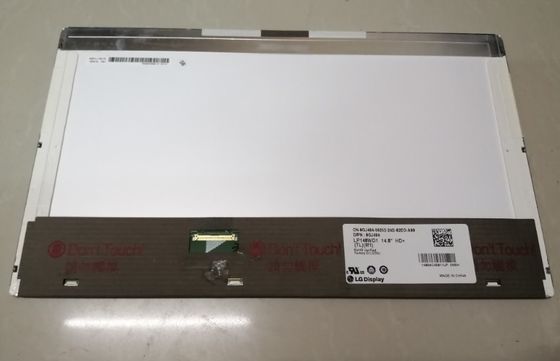

Product Details:
|
| MODEL NUMBER: | LP140WD1-TLM1 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 14.0"inch | BRIGHTNESS: | 300CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1600(RGB)×900 (HD+) 131PPI |
| VIEWING ANGLEG: | 40/40/10/30 (Min.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 300cd/m2 Lcd Display Panels,1600x900 Lcd Display Panels,131PPI Square Tft Display |
||
| Basic Detail : | Manufacturer | Model Name | LP140WD1-TLM1 3 Compatible | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LP140WD1 (TL)(M1), LGD02DF | |
| Panel Size | 14.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 16 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 40/40/10/30 (Min.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.60 (Max.)(13 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1600(RGB)×900 [HD+] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.0644×0.1932 mm | Pixel Pitch(W×H) | 0.1932×0.1932 mm [131PPI] | |
| Physical Size : | Active Viewing | 309.12(W)×173.88(H) mm | Overall Dim. | 323.5(W)×192(H) mm |
| Bezel Opening | 313.85(W)×178.95(H) mm | Overall Depth | 4.9/5.2 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | Wedge (PCBA Bent, T≥5.2mm) | |
| Fixation : | Side mounting holes (6-M2) on left, right bezel | |||
| Other Detail : | Mass | 350g (Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 270/460mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 0.9/1.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 6-bit) | |||

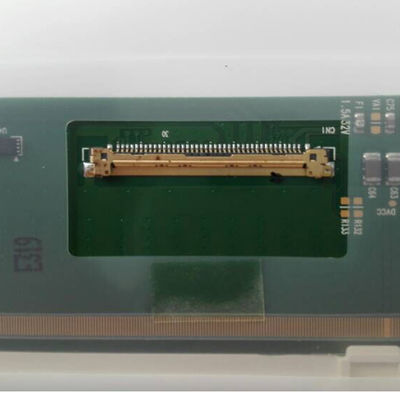

| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05Q-40S-H10 | 1 pcs | 0.5 mm | 40 pins | LVDS-40P2C6B-010A | |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 370/417mA (Typ./Max.) | Input Voltage | 7.5/12.0/21.0V (Min./Typ./Max.) | ||
| Consumption | 4.44/5.0W (Typ./Max.) | |||||
| Package Box : | Amount | Size (L×W×H) | Weight |
|---|---|---|---|
| 30 pcs / box | 490×390×256 mm |
