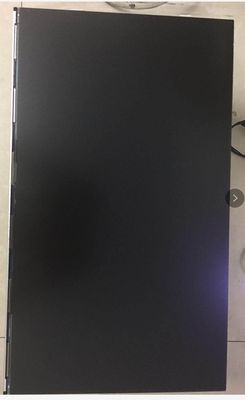

Product Details:
|
| MODEL NUMBER: | LB315WRM-SVA1 | BRAND: | LG DSPLAY |
|---|---|---|---|
| SIZE: | 32.0INCH | BRIGHTNESS: | 1000CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 3840(RGB)×2160 (UHD) 139PPI |
| VIEWING ANGLEG: | 89/89/89/89 (Typ.)(CR≥10) | TEMPERATURE RANGE: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Highlight: | 1000cd/m2 IPS LCD Panel,32.0" IPS LCD Panel,139PPI Square Tft Display |
||
| Basic Detail : | Manufacturer | Model Name | LB315WRM-SVA1 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | LB315WRM (SV)(A1) | |
| Panel Size | 32.0 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 1.07B (10-bit) |
| Color Temperature | 6485K | White Uniformity | 1.33 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 83% | sRGB | 100% coverage |
| Adobe RGB | 82% coverage | DCI-P3 | 86% coverage | |
| Rec.2020 | 62% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 3840(RGB)×2160 [UHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.06053×0.18159 mm | Pixel Pitch(W×H) | 0.18159×0.18159 mm [139PPI] | |
| Physical Size : | Active Viewing | 697.31(W)×392.23(H) mm | Overall Dim. | 730.7(W)×425.2(H) mm |
| Bezel Opening | - | Overall Depth | 23 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Fixation : | Rear mounting holes | |||
| Other Detail : | Mass | 6.00Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Signal Electrical : | Input Current | 1.05/1.31A (Typ./Max.) | Input Voltage | 10V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 10.5/13.1W (Typ./Max.) | Signal Interface | V-by-One 8 lane | |||
| Interface Features : | Position | Physical Type | Connector | |||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| LS Mtron | GT05S-51S-H38 | 1 pcs | 0.5 mm | 51 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Direct light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 85/90mA (Typ./Max.) | Input Voltage | 28.0±1.0V | ||
| Consumption | 71.4/74W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| YEONHO | 12507HS-H10G1 | 4 pcs | 1.25 mm | 10 pins | BLE-10PINS-CCCCAACCCC | |
| Backlight Driver : | No | |||||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 81.9W (Typ.) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
