Product Details:
|
| MODEL NUMBER: | LW550PUL-HLA2 | BRAND: | LG DISPLAY |
|---|---|---|---|
| SIZE: | 55 Inch | BRIGHTNESS: | 400CD/M2 |
| Lamp Type: | WLED | RESOLUTION: | 1920(RGBW)×1080 (FHD) 40PPI |
| VIEWING ANGLEG: | 60/60/60/60 (Min.) | TEMPERATURE RANGE: | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 45 °C |
| Highlight: | 40PPI Lcd Video Module,55" 1920x1080 Lcd Video Module,89% NTSC Tft Lcd Screen |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| LW550PUL-HLA2 | AM-OLED , OLED | LW550PUL (HL)(A2) | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 45 °C | -20 ~ 60 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 60/60/60/60 (Min.) | 1 (Typ.)(G to G); 8 (Typ.)(MPRT) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | - | 150000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 9246K | 1.07B (10-bit) | X:0.285; Y:0.294 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 89% | 100% | 86% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 93% | 67% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.43 (Typ./Max.)(9 points) | ||
| Panel Size : | 55" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1920(RGBW)×1080 [FHD] | RGBW Vertical Stripe | 0.630×0.630 [40PPI] | - | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 1209.6(H) × 680.4(V) | - | 1217.48(H) × 693.94(V) | 0.83/3.28 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |

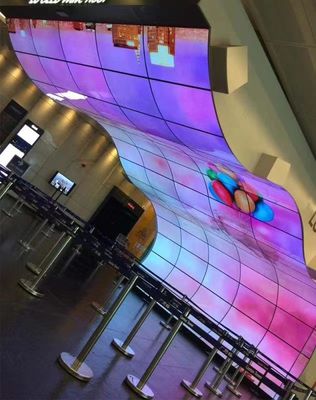

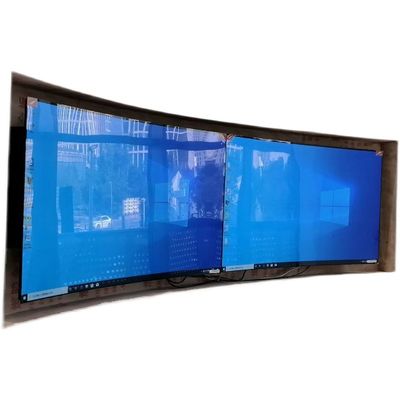

| Curved Display | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.40Kgs (Typ.) | - | Hard coating (2H), Reflection 1.2% (Typ.) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| self | - | - | - | 30K(Typ.) | - |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0/24.0V (Typ.)(VDD/EVDD) | 0.96/3.32A (Typ.)(IDD/EIDD) | 11.52/77.52W (Typ.)(PDD/EPDD) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | V-by-One 8 lane | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| YEONHO | 20022WR-H14B2 | 2.0 mm | 14 pins | 1 pcs | ||
| JAE | FI-RXE51S-HF | 0.5 mm | 51 pins | 1 pcs | ||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 70 pcs / box | - | 1440×1140×1085 mm (L×W×H) |
