10.1" 1366x768 400cd/M2 Lcd Video Module LP101WH4-SLA6 LG Display

10.1" 1366x768 400cd/M2 Lcd Video Module LP101WH4-SLA6 LG Display

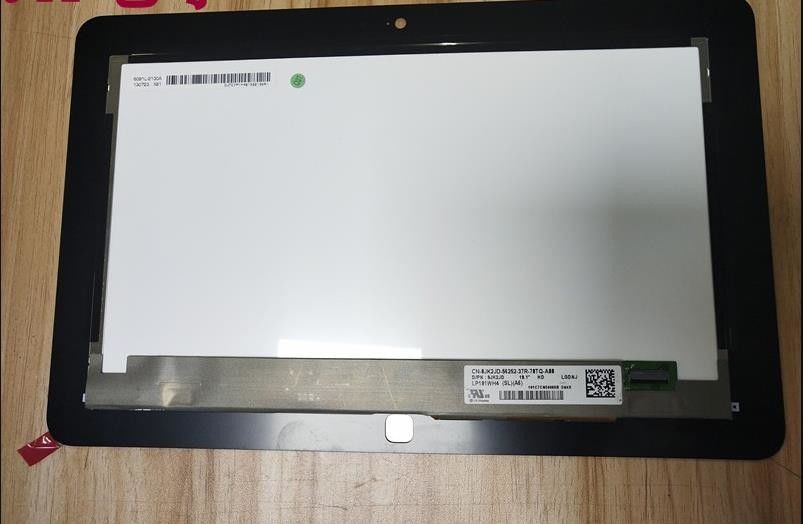

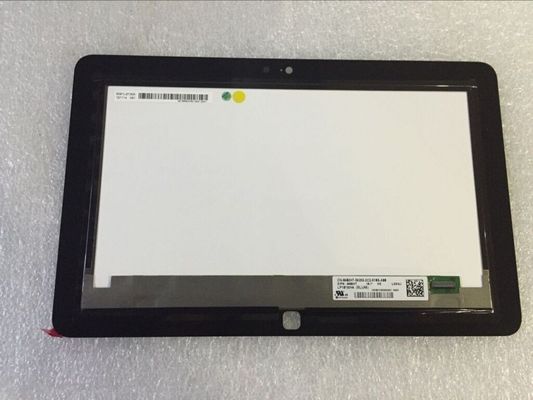

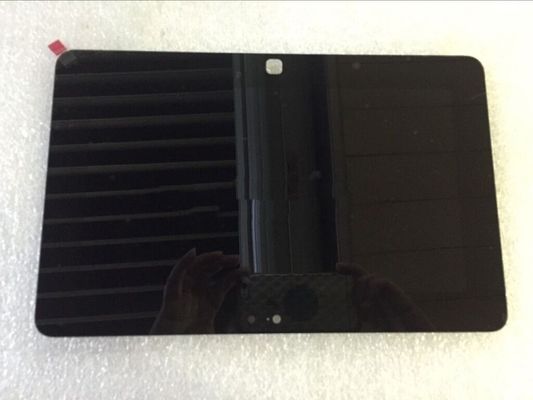

10.1" 1366x768 400cd/M2 Lcd Video Module LP101WH4-SLA6 LG Display 10.1" 1366x768 400cd/M2 Lcd Video Module LP101WH4-SLA6 LG Display 10.1" 1366x768 400cd/M2 Lcd Video Module LP101WH4-SLA6 LG Display

Large Image :  10.1" 1366x768 400cd/M2 Lcd Video Module LP101WH4-SLA6 LG Display

Product Details:
Place of Origin: JAPAN
Brand Name: LG Display
Certification: ISO9001
Model Number: LP101WH4-SLA6
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

10.1" 1366x768 400cd/M2 Lcd Video Module LP101WH4-SLA6 LG Display

Description
MODEL NUMBER: LP101WH4-SLA6 BRAND: LG Display
SIZE: 10.1 Inch BRIGHTNESS: 400CD/M2
Lamp Type: WLED RESOLUTION: 1366(RGB)×768, WXGA, 155PPI
VIEWING ANGLEG: 85/85/85/85 (Typ.)(CR≥10) TEMPERATURE RANGE: Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Highlight:

10.1" Square Tft Display

,

1366x768 Lcd Video Module

,

400cd/M2 Lcd Video Module

LG Display LP101WH4-SLA6 Application Details

Basic Detail :
Manufacturer

LP101WH4-SLA6Model Name
Panel Type
a-Si TFT-LCD , Assembly
Another Name
LP101WH4 (SL)(A6)
Panel Size
10.1 inch
Designed For
Maximum Ratings :
OP Temperature
0 ~ 50 °C
ST Temperature
-20 ~ 60 °C
RoHS

1.5G (14.7 m/s²)Vibration Level



LG Display LP101WH4-SLA6 Optical Details

Basic Detail :
Luminance
400 cd/m² (Typ.)
Contrast Ratio
800:1 (Typ.) (Transmissive)
Good View at
Symmetry
Response Speed
25 (Typ.)(Tr+Td) ms
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Operating Mode
IPS, Normally Black, Transmissive
Color Performance :
Chromaticity
Wx:0.313; Wy:0.329
Support Color
16.7M (8-bit)
Color Temperature
6485K
White Variation
1.20/1.40 (Typ.)(5/13 points)



LG Display LP101WH4-SLA6 Mechanical Details

Pixel Features :
Number of Pixel
1366(RGB)×768, WXGA
Arrangement
RGB Vertical Stripe
Dot Pitch(W×H)
0.0543×0.1629 mm
Pixel Pitch(W×H)
0.1629×0.1629 mm [155PPI]
Physical Size :
Active Viewing
222.52(W)×125.11(H) mm
Overall Dim.
269.37(W)×171.97(H) mm
Bezel Opening
-
Overall Depth
3.85/5.8 (Max.) mm
Outline Features :
Form Shape
Flat Rectangle
Orientation
Landscape type
Aspect Ratio(W:H)
16:9
Shape Style

Touchscreen :
TP Controller
With touch controller
TP Interface
I²C
Touch Points
-
TP Technology
PCAP
Other Detail :
Mass
230g (Max.)
Surface
-
Panel Cover
With Cover Lens



LG Display LP101WH4-SLA6 Interface Detail

Signal Electrical :
Input Current
166/194mA (Typ./Max.)
Input Voltage
3.3V (Typ.)
Consumption
0.55/0.64W (Typ./Max.)
Signal Interface
LVDS (1 ch, 8-bit)
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Amount
Pin Assignment
HRS
FH35C-39S-0.3SHW
0.3 mm
39 pins
1 pcs




LG Display LP101WH4-SLA6 Lightting Details

Lamp Features :
Lamp Type
WLED
Amount
6S6P
Position
Edge light type
Exchange
-
Lamp Shape
6 strings
Lamp Life
12K(Min.) (Hours)
Lamp Electrical :
Input Voltage
17.8/18V (Typ./Max.)
Input Current
24mA (Typ.)
Consumption
2.56/2.65W (Typ./Max.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



LG Display LP101WH4-SLA6 Electronics Details

Refresh Rate :
60Hz
Reverse Scan :
No

 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
